Trek Top Fuel 9.9 Xx1 Axs Mountain Bike

US$ 8,049.00
(2 customer reviews)

Trek Top Fuel 9.9 Xx1 Axs Mountain Bike

Top Fuel 9.9 XX1 AXS pulls out all the stops. This full suspension carbon mountain bike is built with the latest in fully wireless components like a SRAM XX1 Eagle AXS drivetrain and RockShox Reverb AXS dropper

Size Guide
Image Size Guide
Clear
GTIN: 85295818 SKU: TREKMTB2023010009 Category:

Trek Top Fuel 9.9 Xx1 Axs Mountain Bike

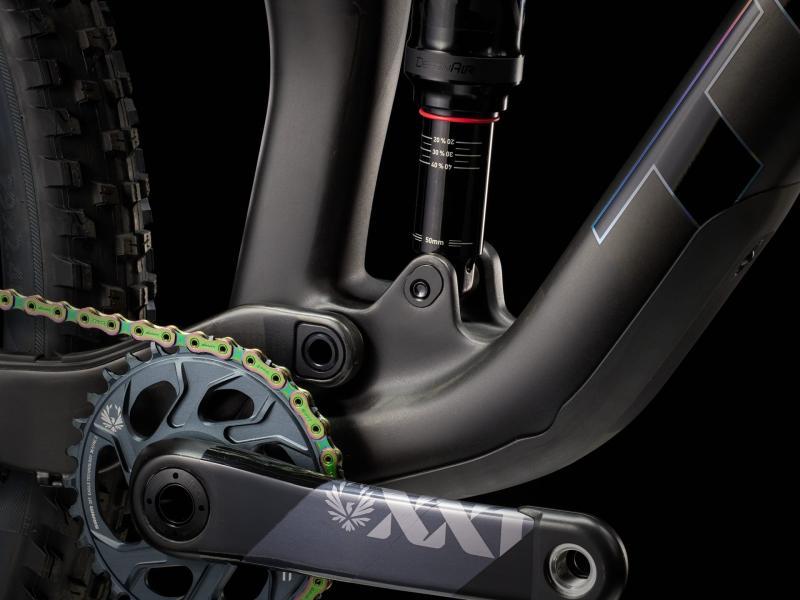

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Quick and in control

120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

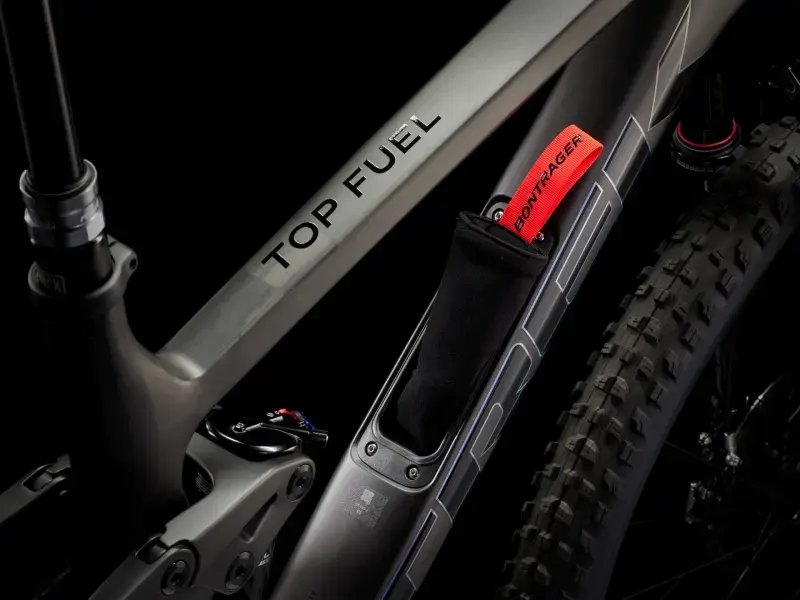

Internal Storage

Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

BITS: Your trailside savior

Cleverly integrated into the steerer tube, the included BITS multi-tool has everything you need for trailside adjustments and repairs.

Hassle-free routing

Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

Will my bike have a curved top tube?

Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

FrameOCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
ForkRockShox Pike Ultimate, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 130mm travel
ShockRockShox Deluxe Ultimate RCT, 185mm x 50mm
Max compatible fork travel130mm (541mm axle-to-crown)
Wheels
Wheel frontBontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rearBontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
TireBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29×2.40”
Tire partBontrager TLR sealant, 6oz
Max tire sizeFrame: 29×2.50″, Fork: See manufacturer
Drivetrain
ShifterSRAM Eagle AXS, wireless, 12 speed

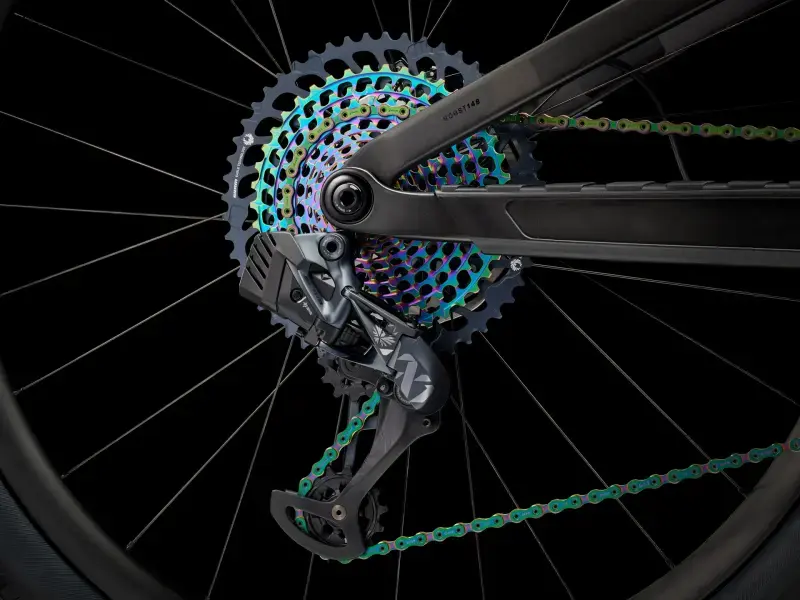

Rear derailleurSRAM XX1 Eagle AXS
*CrankSize: S, M, M/L, L
SRAM XX1 Eagle, DUB, 30T alloy ring, 55mm chainline, 170mm length
Size: XL
SRAM XX1 Eagle, DUB, 30T alloy ring, 55mm chainline, 175mm length
Bottom bracketSRAM DUB MTB Wide, 73mm, BSA threaded
CassetteSRAM Eagle XG-1299, 10-52, 12 speed
ChainSRAM XX1 Eagle, 12 speed
Max chainring size1x: 36T round, 34T oval, min 28T
Components
SaddleBontrager Arvada, austenite rails, 138mm width
*SeatpostSize: S
RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length
Size: M, M/L
RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
Size: L, XL
RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
*Handlebar/stem (integrated)Size: S
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
Size: M, M/L, L, XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
HeadsetKnock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8” top, 1.5” bottom
BrakeSRAM G2 Ultimate hydraulic disc, carbon levers
*Brake rotorSize: S, M, M/L, L, XL
SRAM HS2, 6-bolt, 160mm
Size: S, M, M/L, L, XL
SRAM HS2, 6-bolt, 180mm
Rotor sizeMax brake rotor sizes: Front see fork manufacturer, rear 180mm
Accessories
BatterySRAM eTap battery pack (with charger)
Weight
WeightM – 11.90 kg / 26.24 lbs (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
SizeRider HeightInseam
S

155 – 165 cm

5’1″ – 5’5″

74 – 78 cm

29″ – 31″

M

165 – 176 cm

5’5″ – 5’9″

79 – 83 cm

31″ – 33″

M/L

173 – 180 cm

5’8″ – 5’11”

81 – 86 cm

32″ – 34″

L

177 – 188 cm

5’10” – 6’2″

84 – 89 cm

33″ – 35″

XL

188 – 195 cm

6’2″ – 6’5″

89 – 91 cm

35″ – 36″

2XL

195 – 203 cm

6’5″ – 6’8″

91 – 97 cm

36″ – 38″

size

L, M, S, XL

color

Matte Raw Carbon, Pennyflake, Satin Baja Yellow
