Trek Top Fuel 5 Mountain Bike

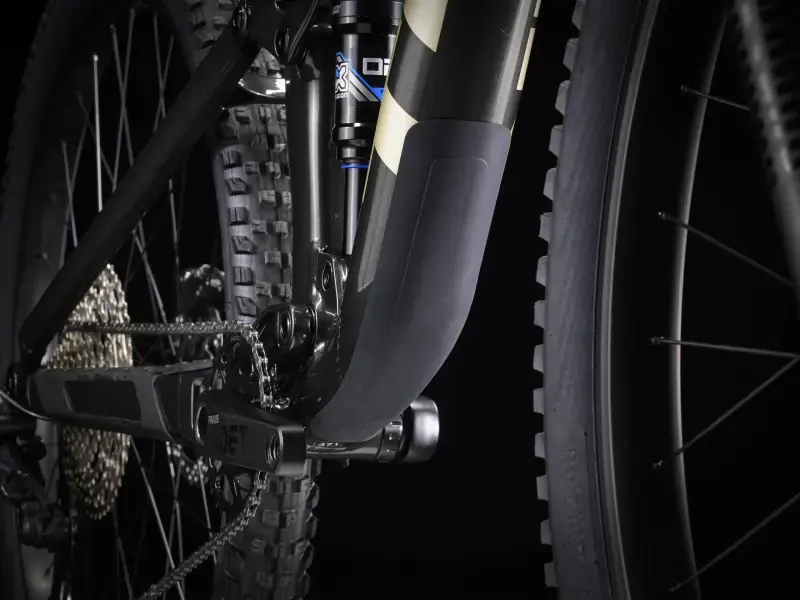

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Quick and in control
120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

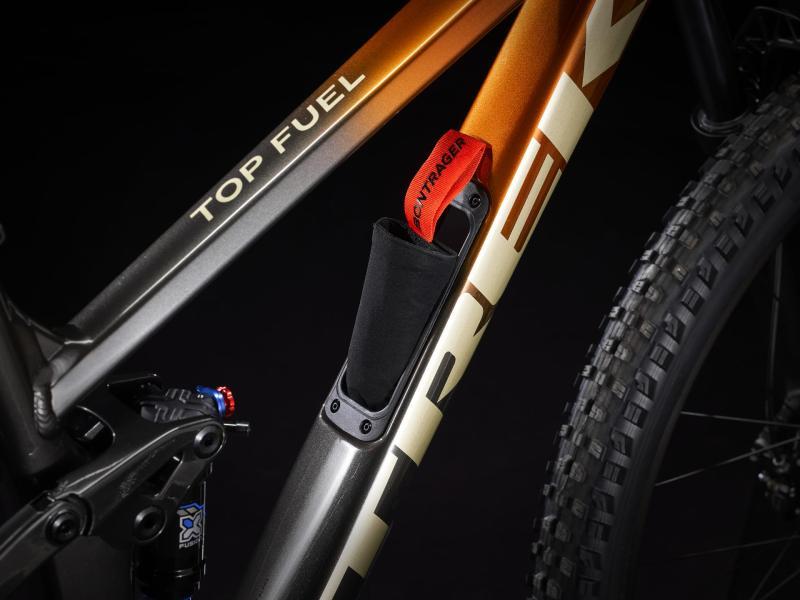

Internal Storage
Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

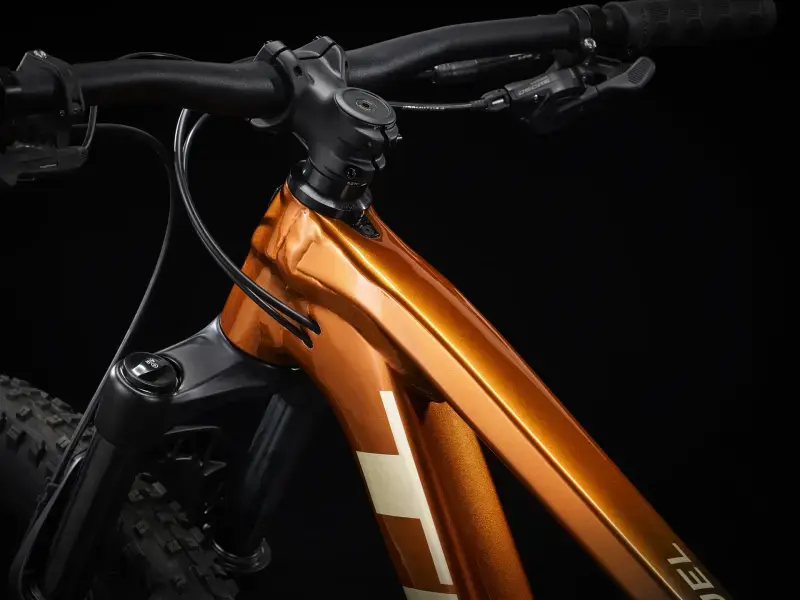

Hassle-free routing
Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.
Will my bike have a curved top tube?
Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

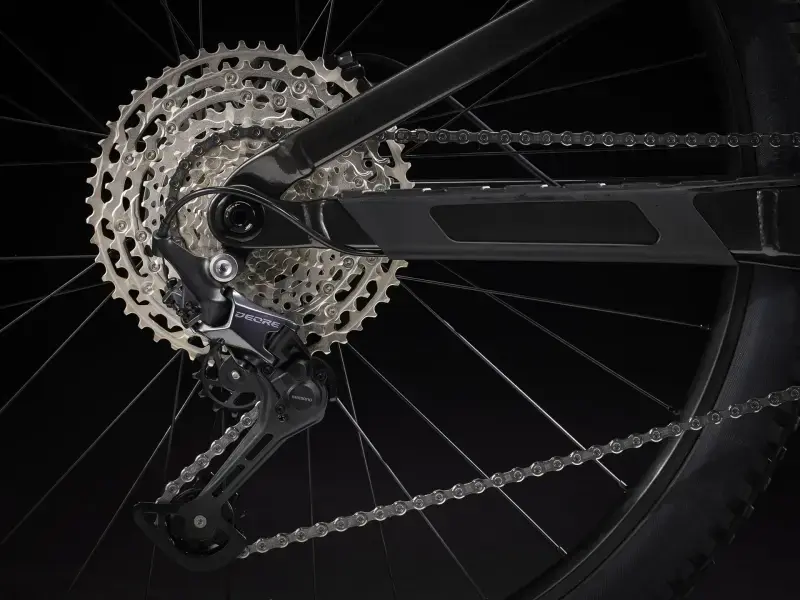

Shimano Deore
Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.
| Frame | Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel |
|---|---|
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel |
| Shock | X-Fusion Pro 2, 2-position damper, 185mm x 50mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
| Hub front | Bontrager alloy, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve |
| *Tire | Size: S, M, M/L, L, XL, XXL Bontrager XT3 Elite, wire bead, 60 tpi, 29×2.40” |
| Size: S, M, M/L, L, XL, XXL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29×2.40” |
|
| *Tire part | Size: S, M, M/L, L, XL, XXL Bontrager TLR sealant, 6oz |
| Size: S, M, M/L, L, XL, XXL Bontrager TLR valve, 50mm |
|
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29×2.50″, Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| *Crank | Size: S, M, M/L, L Shimano MT512, 30T ring, 55mm chainline, 170mm length |
| Size: XL, XXL Shimano MT512, 30T ring, 55mm chainline, 175mm length |
|
| *Bottom bracket | Size: S, M, M/L, L, XL, XXL Shimano BB-MT501 BSA |
| Size: S, M, M/L, L, XL, XXL Shimano SM-BB52, 73mm, threaded external bearing |
|
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Max chainring size | 1x: 36T round, 34T oval, min 28T |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length |
| Size: M, M/L TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length |
|
| Size: L, XL, XXL TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length |
|
| *Handlebar | Size: S, M, M/L, L, XL, XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Size: S, M, M/L, L, XL, XXL Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length |
| Headset | Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8” top, 1.5” bottom |

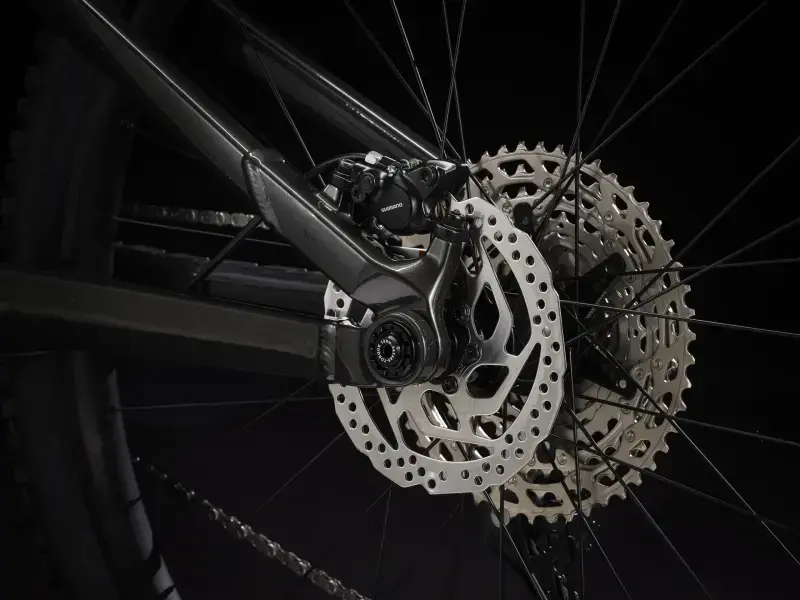

| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: S, M, M/L, L, XL, XXL Shimano RT26, 6-bolt,180mm |
| Size: S, M, M/L, L, XL, XXL Shimano RT26, 6-bolt,160mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
| Rotor size | Max brake rotor sizes: Front see fork manufacturer, rear 180mm |
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
| Weight | M – 15.29 kg / 33.71 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 – 165 cm 5’1″ – 5’5″ |
74 – 78 cm 29″ – 31″ |
| M |
165 – 176 cm 5’5″ – 5’9″ |
79 – 83 cm 31″ – 33″ |
| M/L |
173 – 180 cm 5’8″ – 5’11” |
81 – 86 cm 32″ – 34″ |
| L |
177 – 188 cm 5’10” – 6’2″ |
84 – 89 cm 33″ – 35″ |
| XL |
188 – 195 cm 6’2″ – 6’5″ |
89 – 91 cm 35″ – 36″ |
| 2XL |
195 – 203 cm 6’5″ – 6’8″ |
91 – 97 cm 36″ – 38″ |
