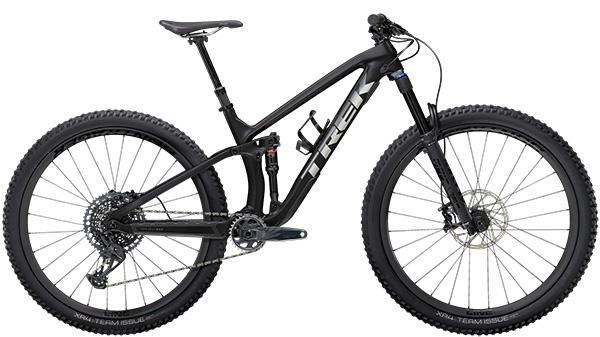

Trek Fuel Ex 9.8 Gx Gen 5 Mountain Bike

US$ 4,379.00
(2 customer reviews)

Trek Fuel Ex 9.8 Gx Gen 5 Mountain Bike

Fuel EX 9.8 combines a light full-carbon frame with parts chosen for the highest performance-to-price ratio. High-end 130mm rear and 140mm front FOX suspension with upgraded front and rear dampers, carbon wheels with a Rapid Drive rear hub, and SRAM’s latest, widest-range drivetrain give this model an extra edge you’ll notice from the first pedal stroke.

Size Guide
Image Size Guide
Clear
GTIN: 85071198 SKU: TREKMTB2023010086 Category:

Trek Fuel Ex 9.8 Gx Gen 5 Mountain Bike

Will my bike have a curved top tube?

Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Internal Storage

Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

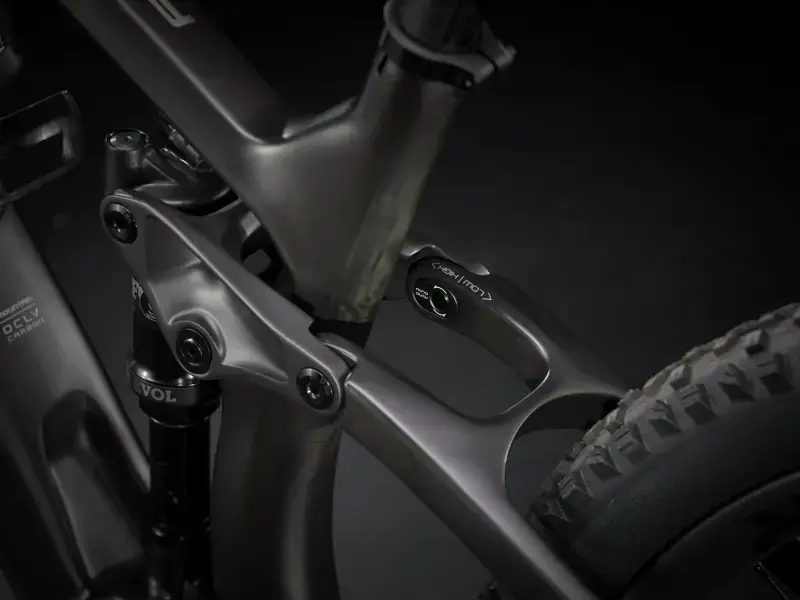

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

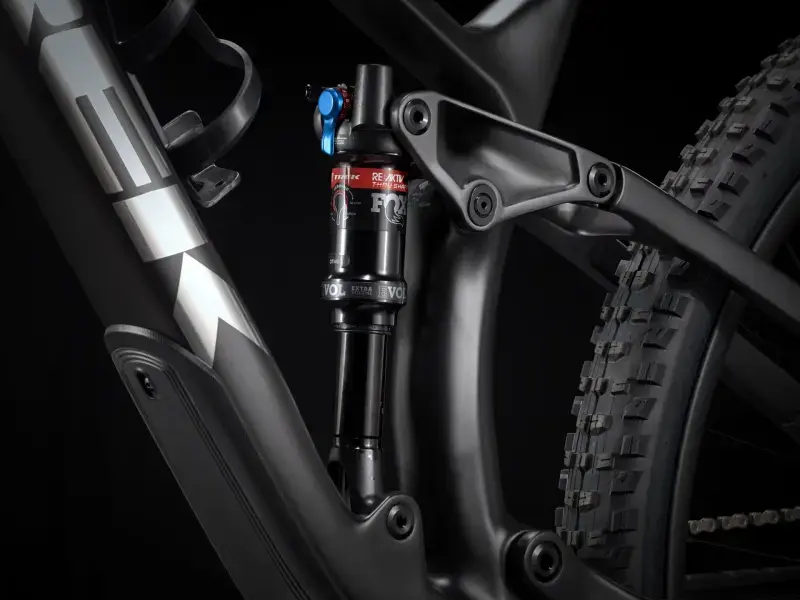

RE:aktiv with Thru Shaft

RE:aktiv with Thru Shaft gives you unmatched grip and control with a shock that reacts to the terrain faster than anything else out there.

Straight Shot w/Knock Block

Trek’s Straight Shot frame design optimizes the stiffness-to-weight ratio for a more responsive ride. You’ll be able to push harder and stay more planted on your line when the going gets rough.

FrameOCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
ForkFox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
*ShockSize: XS , S
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 52.5mm
Size: S , M , ML , L , XL
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 55mm
Max compatible fork travel150mm (561mm axle-to-crown)
Wheels
Wheel frontBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rearBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Hub frontBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rearBontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru axle
Skewer rearBontrager Switch thru axle, removable lever
RimBontrager Line Elite 30, Tubeless Ready
*TireSize: XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 27.5×2.40”
Size: XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5×2.60”
Size: XS , S
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5×2.50”
Size: S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29×2.40”
Size: S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29×2.60”
Size: S , M , ML , L , XL
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50”
Tire partBontrager TLR sealant, 6oz
Rim stripBontrager TLR
Max tire sizeFrame: 29×2.60″, Fork: See manufacturer
Drivetrain
ShifterSRAM GX Eagle, 12 speed
Rear derailleurSRAM GX Eagle
*CrankSize: XS , S , M , ML , L

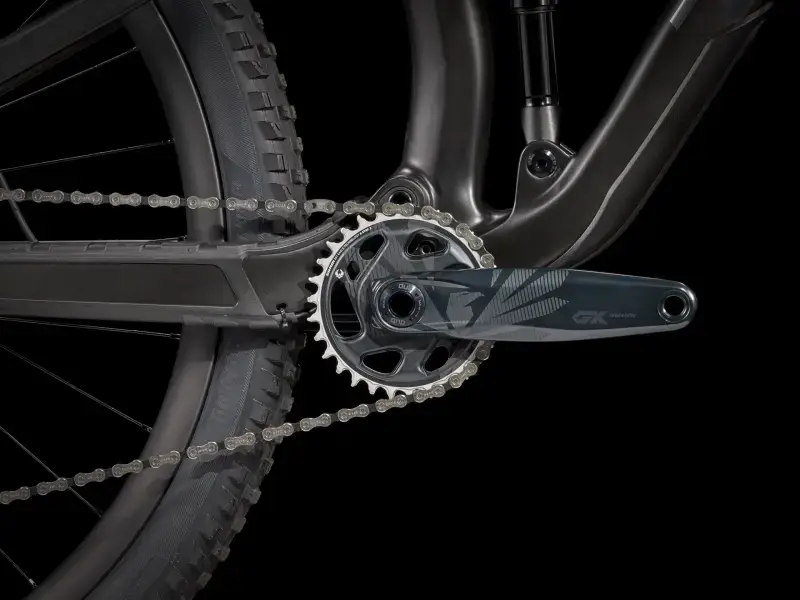

SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 170mm length
Size: S , M , ML , L , XL
SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 175mm length
Bottom bracketSRAM DUB, 92mm, PressFit

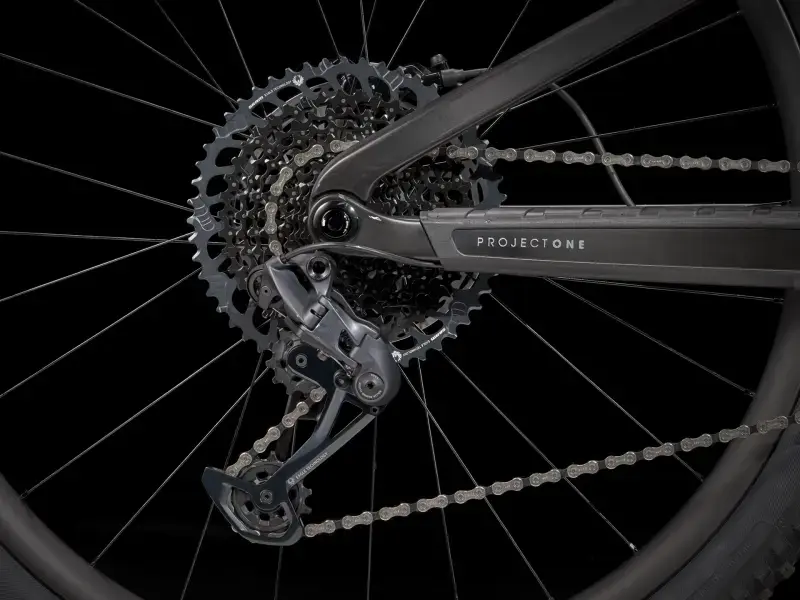

CassetteSRAM Eagle XG-1275, 10-52, 12 speed
ChainSRAM GX Eagle, 12 speed
Max chainring size1x: 34T
Components
SaddleBontrager Arvada, austenite rails, 138mm width
*SeatpostSize: XS , S
Bontrager Line Elite, 100mm travel, MaxFlow, internal routing, 31.6mm, 340mm length
Size: XS , S
Bontrager Line Elite Dropper, 100mm travel, internal routing, 31.6mm, 340mm length
Size: M , ML
Bontrager Line Elite, 150mm travel, MaxFlow, internal routing, 31.6mm, 440mm length
Size: M , ML
Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Size: L , XL
Bontrager Line Elite, 170mm travel, MaxFlow, internal routing, 31.6mm, 480mm length
Size: L , XL
Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6mm, 480mm length
*HandlebarSize: XS , S , M , ML , L , XL
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Size: XS , S
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
*GripsSize: XS , S , M , ML , L , XL
Bontrager XR Trail Elite, nylon lock-on
Size: XS , S , M , ML , L , XL
Bontrager XR Trail Elite, alloy lock-on
*StemSize: XS , S
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length
Size: M , ML , L , XL
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom

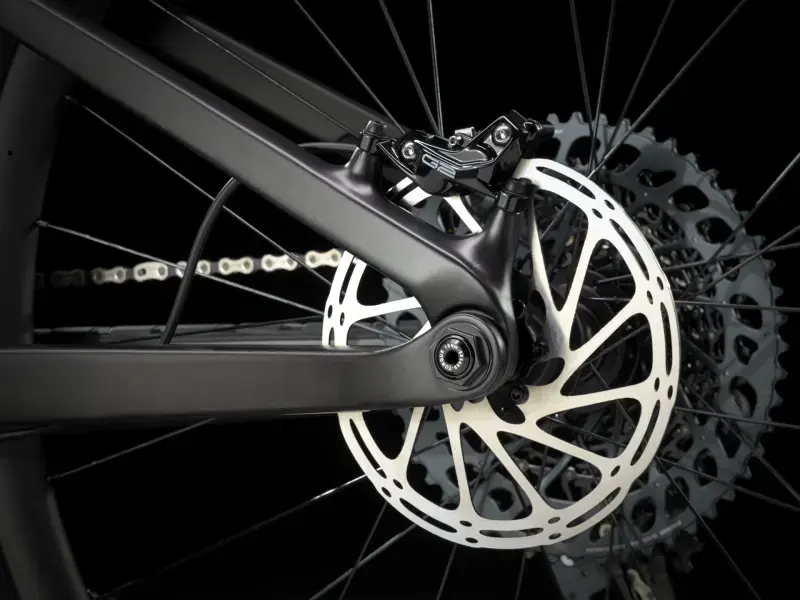

BrakeSRAM G2 RS 4-piston hydraulic disc
*Brake rotorSize: XS , S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200mm
Accessories
BagBontrager BITS Internal Frame Storage Bag
Weight
WeightM – 13.10 kg / 28.89 lbs (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
SizeRider HeightInseam
XS

145 – 155 cm

4’9″ – 5’1″

69 – 73 cm

27″ – 29″

S

155 – 165 cm

5’1″ – 5’5″

74 – 78 cm

29″ – 31″

M

165 – 176 cm

5’5″ – 5’9″

79 – 83 cm

31″ – 33″

M/L

173 – 180 cm

5’8″ – 5’11”

81 – 86 cm

32″ – 34″

L

177 – 188 cm

5’10” – 6’2″

84 – 89 cm

33″ – 35″

XL

188 – 195 cm

6’2″ – 6’5″

89 – 91 cm

35″ – 36″

size

L, M, S, XL
