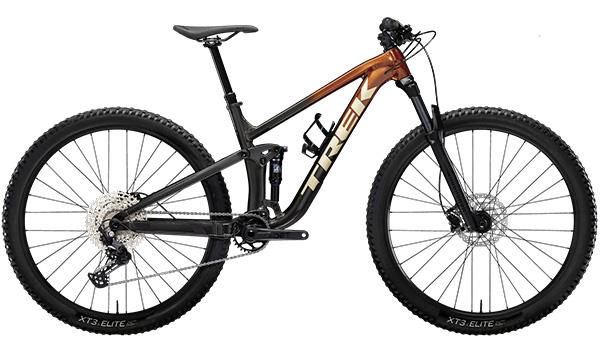

Trek Fuel Ex 5 Gen 5 Mountain Bike

US$ 1,889.00
(3 customer reviews)

Trek Fuel Ex 5 Gen 5 Mountain Bike

Fuel EX 5 is a full-suspension trail bike that’s ready to handle it all. With trail-taming 140mm front and 130mm rear suspension, a Shimano 1×12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

Size Guide
Image Size Guide
GTIN: 86101741 SKU: TREKMTB2023010104 Category:

Trek Fuel Ex 5 Gen 5 Mountain Bike

Will my bike have a curved top tube?

Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Straight Shot w/Knock Block

Trek’s Straight Shot frame design optimizes the stiffness-to-weight ratio for a more responsive ride. You’ll be able to push harder and stay more planted on your line when the going gets rough.

Shimano Deore

Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

FrameAlpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
ForkRockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel
*ShockSize: XS , S
X-Fusion Pro 2, 2-position damper, 210mm x 52.5mm
Size: S , M , ML , L , XL , XXL
X-Fusion Pro 2, 2-position damper, 210mm x 55mm
Max compatible fork travel150mm (561mm axle-to-crown)
Hub frontBontrager alloy, 6-bolt, Boost110, 15mm thru axle
*Hub rearSize: XS , S , M , ML , L , XL , XXL
Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
Size: XS , S , M , ML , L , XL , XXL
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rearBontrager Switch thru axle, removable lever
RimAlex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
Spokes14g stainless steel, black
*TireSize: XS , S
Bontrager XR4 Comp, wire bead, 30 tpi, 27.5×2.60”
Size: S , M , ML , L , XL , XXL
Maxxis Rekon EXO, wire bead, 60 tpi, 29×2.60”
Size: S , M , ML , L , XL , XXL
Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60”
Rim stripBontrager TLR
Max tire sizeFrame: 29×2.60″, Fork: See manufacturer
ShifterShimano Deore M6100, 12 speed
Rear derailleurShimano Deore M6100, long cage
*CrankSize: XS , S , M , ML , L
Shimano MT511, 30T steel ring, 52mm chainline, 170mm length
Size: M , ML , L , XL , XXL
Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
Bottom bracketShimano MT500, 92mm, PressFit
CassetteShimano Deore M6100, 10-51, 12 speed
ChainShimano Deore M6100, 12 speed
Max chainring size1x: 34T
SaddleBontrager Arvada, steel rails, 138mm width
*SeatpostSize: XS , S
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
Size: M , ML , L , XL , XXL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
HandlebarBontrager alloy, 31.8mm, 15mm rise, 750mm width
GripsBontrager XR Trail Comp, nylon lock-on
StemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom
BrakeShimano hydraulic disc, MT201 lever, MT200 caliper
Brake rotorShimano RT56, 6-bolt, 180mm
WeightM – 15.70 kg / 34.62 lbs
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
SizeRider HeightInseam

145 – 155 cm

4’9″ – 5’1″

69 – 73 cm

27″ – 29″


155 – 165 cm

5’1″ – 5’5″

74 – 78 cm

29″ – 31″


165 – 176 cm

5’5″ – 5’9″

79 – 83 cm

31″ – 33″


173 – 180 cm

5’8″ – 5’11”

81 – 86 cm

32″ – 34″


177 – 188 cm

5’10” – 6’2″

84 – 89 cm

33″ – 35″


188 – 195 cm

6’2″ – 6’5″

89 – 91 cm

35″ – 36″


195 – 203 cm

6’5″ – 6’8″

91 – 97 cm

36″ – 38″


L, M, S, XL


Lithium Grey/Marigold, Matte Dnister Black
