Features
- Voltage Alloy Frame
- X-Fusion Slant DJ 100mm
- Singlespeed
- Tektro HDM275 Disc brakes
- Kenda K-RAD 26″x 2.3 Tires

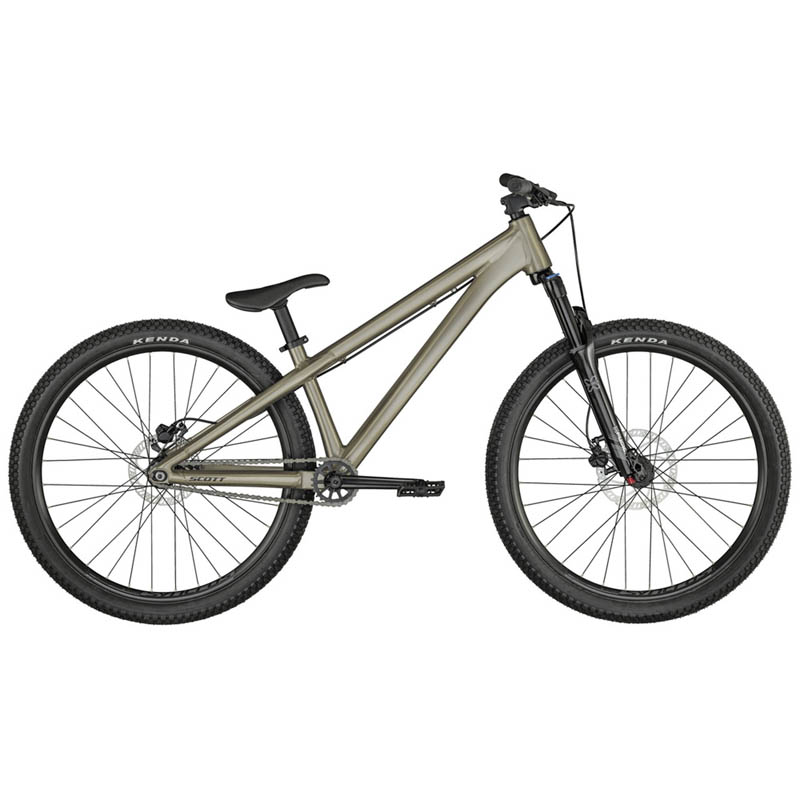

The SCOTT Voltage YZ 0.1 is our Pro riders replica bike built around a high-end Alloy dirtjump mountain bike frame. Equipped with ultashort adjustable chain stays, a tapered headtube and high-end components, this bike is perfect for hitting the pumptrack, the dirtjumps, or jibbin’ through the streets.
- Frame: Voltage YZ DJ 6061 Alloy/Hydroformed tubing/Disc Dropout / horizontal for 135x10mm singleSpeed
- Fork: X-Fusion Slant DJ/100mm travel / Air / Lo Comp / Rebound
- Crankset: SCOTT Cr-Mo 3-piece cranks/170mm / 25T Alloy BMX sprocket
- BB-Set: Jien-Yuan BB92 / 19mm Axle
- Chain: KMC Z510
- Cassette: Sprocket / 12 T
- Brakes: Tektro HDM275 Hydr. Disc
- Rotor: Tektro / 6 Bolt / 160mm
- Handlebar: Syncros Hixon 2.0 Rise/31.8mm / 800mm / 20mm Rise/Syncros Pro DH lock-on grips
- H’stem: Syncros XM1.5/31.8mm / 40mm / 0°
- Seatpost: Syncros DJ1.5 / Pivotal / 31.6mm
- Seat: Syncros DJ1.5 / Pivotal
- Headset: Syncros OE Press Fit E2 / Tapered 1.5-1 1/8″/OD 50/62mm / ID 44/56mm”
- Hub (Front): Formula DC-51 / 15x100mm / thru axle
- Hub (Rear): Formula DC42-N/w/tracknut / single Speed
- Spokes: Stainless 14G / black / 2.0mm
- Rims: Syncros MD25 Disc / 32H
- Front Tire: Kenda K905 K-RAD/30TPI / wire / 26×2.3″;Rear Tire=Kenda K905 K-RAD/30TPI / wire / 26×2.3″”
- Pedals: Wellgo B107.N flat
- Approx weights in KG: 12.80 (with tubes)
- Approx weights in LBS: 28.22 (with tubes)
- Max. System Weight: 128 kg/The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
MOUNTAIN BIKE SIZING CHART
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4′ 10″ – 5” 2″ | 148 – 158 | 13 -14 | XS |
| 5′ 2″ – 5′ 6″ | 158 – 168 | 15 – 16 | S |
| 5′ 6″ – 5′ 10″ | 168 – 178 | 17 -18 | M |
| 5′ 10″ – 6′ 1″ | 178 -185 | 19 – 20 | L |
| 6′ 1″ – 6′ 4″ | 185 – 193 | 21 – 22 | XL |
| 6′ 4″ – 6′ 6″ | 193 – 198 | 23 -24 | XXL |
WOMEN’S MOUNTAIN BIKE SIZING CHART
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4′ 10″ – 5′ 2″ | 148 – 158 | 13 – 14 | XS |
| 5′ 2″ – 5′ 6″ | 158 -168 | 15 – 16 | S |
| 5′ 6″ – 5′ 10″ | 168 – 178 | 17 – 18 | M |
| 5′ 10″ – 6′ 1″ | 178 – 185 | 19+ | L |
