Features
- Scale Alloy 6061 Frame Boost QR
- RockShox Judy 100mm Fork
- RideLoc 2-Position Remote
- SRAM NX-SX 12 Speed
- Shimano Disc Brakes
- Syncros Rims
- Maxxis Rekon Race Tires

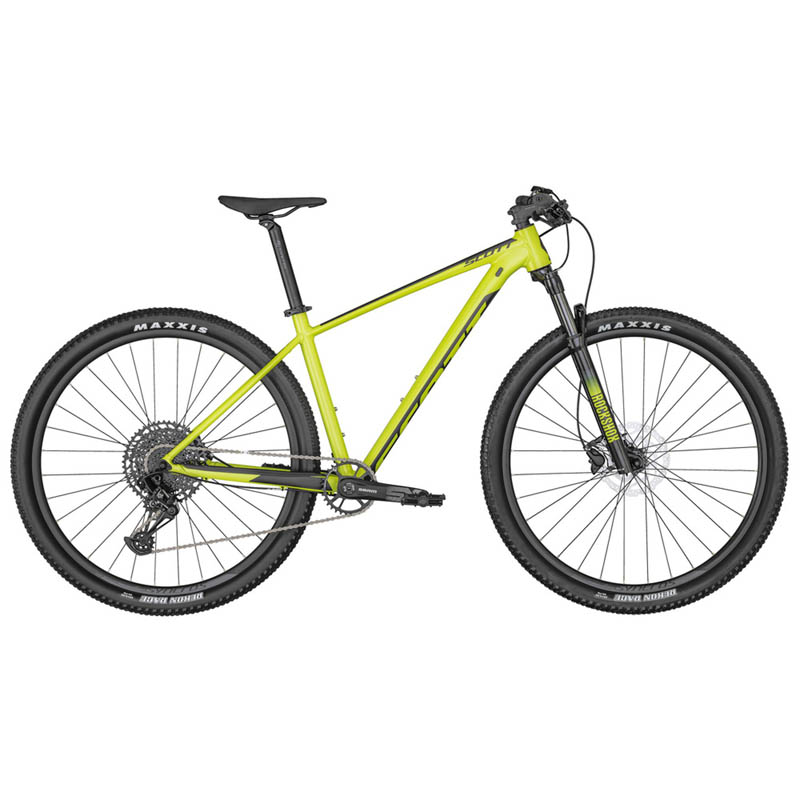

The SCOTT Scale 970 comes fully equipped with a SRAM Eagle 12-speed drivetrain and a RockShox fork, along with Remote Lockout technology to allow for multiple travel settings to adjust to riding conditions.
- Frame: Scale Alloy 6061 Custom Butted Tubing/Boost QR 5x141mm / Tapered Headtube / BB92/Internal Cable Routing / replaceable hanger
- Fork: RockShox Judy Silver TK Solo Air/46mm offset / Tapered Steerer / Reb. Adj./Lockout / 100mm travel
- Remote System: SCOTT RideLoc Remote
- Rear Derailleur: SRAM NX Eagle 12 Speed
- Shifters: SRAM SX Eagle Trigger
- Crankset: SRAM SX Eagle DUB Boost/32T
- BB-Set: SRAM DUB PF 92 MTB / shell 41x92mm
- Chain: SRAM CN SX Eagle
- Cassette: SRAM SX-PG1210 / 11-50 T
- Brakes: Shimano MT200 Disc
- Rotor: Shimano SM-RT10 CL / 180/F and 160/R
- Handlebar: Syncros Alloy 6061/T shape Flat / 9° / 740mm
- H’stem: Syncros Alloy 6061/oversized 31.8mm / 1 1/8 / 6°
- Seatpost: Syncros / 31.6x400mm
- Seat: Syncros Belcarra Regular 2.5
- Headset: Syncros OE Press Fit E2 / Tapered 1.5-1 1/8″/OD 50/62mm / ID 44/56mm”
- Hub (Front): Formula CL-51
- Hub (Rear): Formula CL-2241 / QR 5x141mm
- Spokes: Stainless Black 15G / 1.8mm
- Rims: Syncros / 32H
- Front Tire: Maxxis Rekon Race / 2.25 / 60TPI”
- Rear Tire: Maxxis Rekon Race / 2.25 / 60TPI”
- Pedals: Femin FP873ZU
- Approx weights in KG: 13.20 (without Pedals & with tubes)
- Approx weights in LBS: 29.10 (without Pedals & with tubes)
- Max. System Weight: 128 kg/The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
MOUNTAIN BIKE SIZING CHART
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4′ 10″ – 5” 2″ | 148 – 158 | 13 -14 | XS |
| 5′ 2″ – 5′ 6″ | 158 – 168 | 15 – 16 | S |
| 5′ 6″ – 5′ 10″ | 168 – 178 | 17 -18 | M |
| 5′ 10″ – 6′ 1″ | 178 -185 | 19 – 20 | L |
| 6′ 1″ – 6′ 4″ | 185 – 193 | 21 – 22 | XL |
| 6′ 4″ – 6′ 6″ | 193 – 198 | 23 -24 | XXL |
WOMEN’S MOUNTAIN BIKE SIZING CHART
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4′ 10″ – 5′ 2″ | 148 – 158 | 13 – 14 | XS |
| 5′ 2″ – 5′ 6″ | 158 -168 | 15 – 16 | S |
| 5′ 6″ – 5′ 10″ | 168 – 178 | 17 – 18 | M |
| 5′ 10″ – 6′ 1″ | 178 – 185 | 19+ | L |
