Features

• Scale Carbon HMF Frame
• RockShox Judy 100mm Fork
• RideLoc 2-Position Remote
• SRAM NX-SX Eagle 12 Speed
• Shimano Disc Brakes
• Syncros X-25 Rims
• Schwalbe Rapid Rob Tires
• Syncros Parts

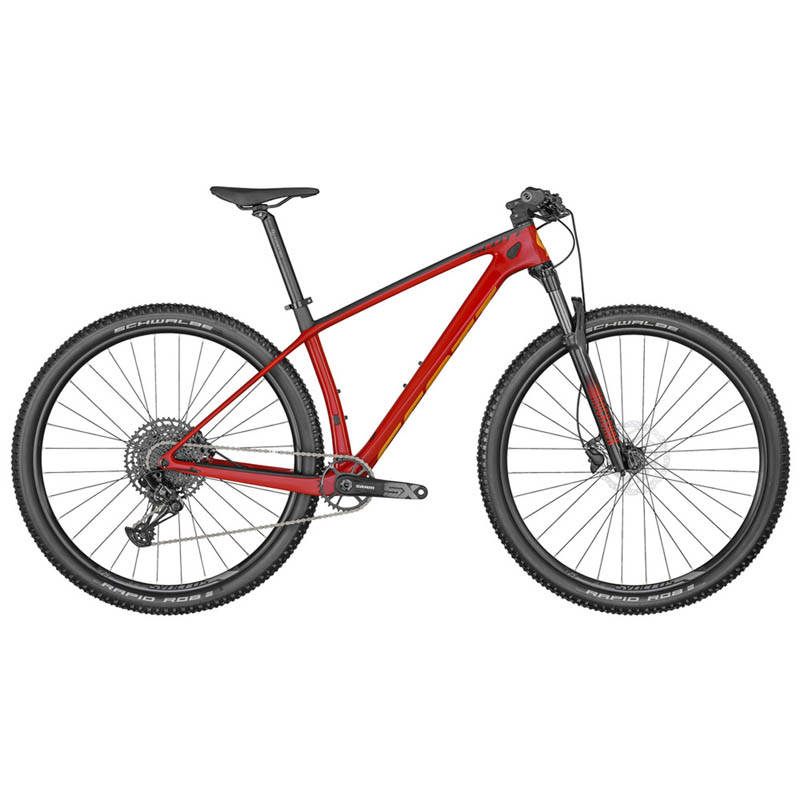

The SCOTT Scale 940 features an ultralight Carbon Frame. RockShox suspension, a SRAM Eagle drivetrain and Syncros components create a durable and affordable hardtail designed for world-class speed.

EVO-LAP TECHNOLOGY

With the proper selection of materials, eighty percent of the work to create a frame is done. But the remaining twenty percent requires most of our efforts. For this reason, our choice of the most advanced carbon fibers in the market is followed by intensive use of specific tools, like FEA (finite element analysis) software, to map out the carbon lay-up.

With FEA software, we can simulate different forces on a virtual model of the frame and adjust the frame construction accordingly. FEA software enables us to create complete virtual prototypes incorporating all the physical phenomena that exist in real-world environments.

With our Evo-Lap technology we model the frame to optimize the surface area, simulate tube structures with different ply orientations, observe the results of using different configurations, and test the stress distribution in different areas of the frame. Thanks to this extensive computer modeling, we’ve optimized the carbon layers in all the parts of our frame. When the parts were bonded together in the first prototypes, the result was a super light and compact frame without sacrificing the stiffness, comfort or impact resistance. The entire range benefitted from our Evo-Lap technology.

SDS2 SHOCK DAMPING SYSTEM

Racers will attest that ride comfort is an essential element of performance. During the development of a hardtail frame, it is essential to distinguish the areas of the frame optimized for comfort from the ones more related to the stiffness.

Many brands in the market offer different solutions to improve those aspects but most of them are limited only to a component or a specific area of the frame. With SCOTT SDS2 technology we go beyond this approach, reinventing the concept of comfort on hardtail frames without adding additional parts or sacrificing pedaling stiffness.To reach our goal, we ran analysis and testing to optimize different shapes of the tubes on the whole frame along with accurate alignment of the carbon fibers. The result on the new Scale frame is specific, controlled flex in areas that increase rider comfort and guarantee optimal absorption of vibrations not only on the saddle but also when the riders standing up on the pedals.

This approach to comfort must not only accommodate the lightest weight attainable, but also maintain stiffness for the sake of pedal efficiency. Further, superior rigidity of the frame ensures accurate handling in the steeper sections. In the new Scale we’ve considered all these aspects to avoid any undesired flexion that would affect performances either climbing or descending .

• Frame: Scale 3 Carbon / IMP Technology / HMF/BB92 / SW DM dropouts for Boost 12x148mm/SDS2 advanced Shock & Standing Damping System/ICCR Cable routing
• Fork: RockShox Judy Silver TK Solo Air/15x110mm QR axle / 42mm offset / Tapered Steerer/Reb. Adj. / Lockout / 100mm travel
• Remote System: SCOTT RideLoc / below bar remote / integ. Grip clamp
• Rear Derailleur: SRAM NX Eagle 12 Speed
• Shifters: SRAM SX Eagle Trigger
• Crankset: SRAM SX Eagle DUB/32T
• BB-Set: SRAM DUB PF 92 MTB / shell 41x92mm
• Chain: SRAM CN SX Eagle
• Cassette: SRAM SX-PG1210 / 11-50 T
• Brakes: Shimano MT200 Disc
• Rotor: Shimano SM-RT10 CL / 180/F and 160/R
• Handlebar: Syncros Alloy 6061/T shape Flat / 9° / 740mm/Syncros Pro lock-on grips
• H’stem: Syncros FL2.0/6° / integrated Spacer & Top Cap/6061 Alloy / 31.8mm / 1 1/8″;Seatpost=Syncros / 31.6x400mm”
• Seat: Syncros Belcarra Regular 2.5
• Headset: Syncros Pro Drop in / Tapered 1.5-1 1/8″/Bearing diameter size 42mm and 52mm”
• Hub (Front): Formula CL-811 / 15x110mm
• Hub (Rear): Formula CL-3248 / 12x148mm
• Spokes: Stainless Black 15G / 1.8mm
• Rims: Syncros X-25 / 32H / 25mm
• Front Tire: Schwalbe Rapid Rob 29×2.25 / Active line”
• Rear Tire: Schwalbe Rapid Rob 29×2.25 / Active line”
• Approx weights in KG: 12.40 (with tubes)
• Approx weights in LBS: 27.34 (with tubes)
• Max. System Weight: 128 kg/The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
