Features
- Active 700/900 Alloy Frame
- Suntour XCR32-Air-RL-R 100mm Fork
- Suntour Remote lockout
- Shimano XT/Deore 22 Speed
- Shimano Brakes
- Kenda Booster

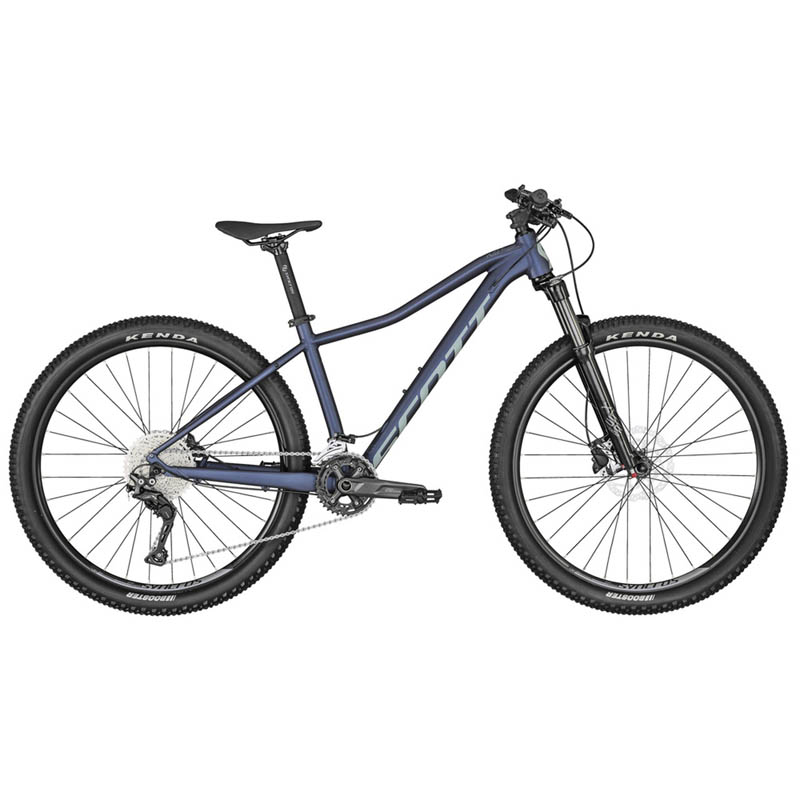

What does it mean to be active? That’s up to you. The SCOTT Contessa Active 10 is a hardtail mountain bike that features a super light Alloy Frame. The 10 comes fully equipped with a Suntour fork and a Shimano drivetrain.
- Frame: Contessa Active 700/900 series / Alloy 6061 Custom Butted Tubing/Boost QR 5x141mm / Tapered Headtube / BB92 / PF/Internal Cable Routing / replaceable hanger
- Fork: Suntour XCR32-RL-R/Air / Alloy Steerer/Remote Lockout / Reb. Adj./100mm travel
- Remote System: Suntour Remote lockout
- Rear Derailleur: Shimano XT RD-M8000 SGS/Shadow Type / 22 Speed
- Front Derailleur: Shimano Deore FD-M5100 Side Swing / 31.8mm
- Shifters: Shimano Deore SL-M5100/R-plus / 2 way release
- Crankset: Shimano FC-M5100-B2/2-piece Design / 36X26
- BB-Set: Shimano BB-MT500-PA / shell 41x92mm
- Chain: KMC X11
- Cassette: Shimano CS-M5100-11 / 11-42T
- Brakes: Shimano MT200 / Hydr. Disc
- Rotor: Shimano SM-RT10 CL / 180/F and 160/R
- Handlebar: Syncros 3.0 / 680mm/black / 31.8mm / 12mm rise / 9° BS/Syncros Women Comfort lock-on grip
- H’stem: Syncros 3.0 / 7° / Black
- Seatpost: Syncros 3.0/31.6mm / 350mm / Black
- Seat: Syncros Savona 2.5 V-Concept
- Headset: Syncros OE Press Fit / Reduce 1.5-1 1/8″/OD 50/62mm / ID 44/56mm”
- Hub (Front): Formula CL51
- Hub (Rear): Formula CL2241 / 141QR
- Spokes: 14 G / stainless / black
- Rims: Syncros X-20 Disc/32H / black
- Front Tire: Kenda Booster/2.4 / 30TPI”
- Rear Tire: Kenda Booster/2.4 / 30TPI”
- Pedals: VP VP-536
- Approx weights in KG: 13.80
- Approx weights in LBS: 30.42
- Max. System Weight: 128 kg/The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
MOUNTAIN BIKE SIZING CHART
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4′ 10″ – 5” 2″ | 148 – 158 | 13 -14 | XS |
| 5′ 2″ – 5′ 6″ | 158 – 168 | 15 – 16 | S |
| 5′ 6″ – 5′ 10″ | 168 – 178 | 17 -18 | M |
| 5′ 10″ – 6′ 1″ | 178 -185 | 19 – 20 | L |
| 6′ 1″ – 6′ 4″ | 185 – 193 | 21 – 22 | XL |
| 6′ 4″ – 6′ 6″ | 193 – 198 | 23 -24 | XXL |
WOMEN’S MOUNTAIN BIKE SIZING CHART
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4′ 10″ – 5′ 2″ | 148 – 158 | 13 – 14 | XS |
| 5′ 2″ – 5′ 6″ | 158 -168 | 15 – 16 | S |
| 5′ 6″ – 5′ 10″ | 168 – 178 | 17 – 18 | M |
| 5′ 10″ – 6′ 1″ | 178 – 185 | 19+ | L |
