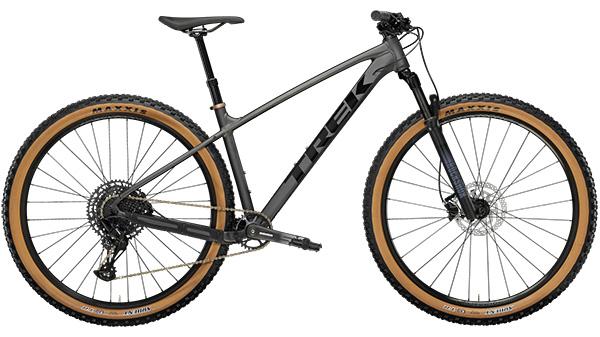

Trek X-caliber 8 Mountain Bike
High tech frame
The Alpha Gold Aluminum frame is packed with features that make your ride better. A tapered head tube gives you more precise, confident handling on the front end, while Boost 141 rear hub spacing gives you shorter chainstays for more nimble handling out back.
Built for speed
X-Caliber is a classic XC hardtail with quick-handling geometry, weight-conscious parts, and just enough suspension to take the edge off bumps. These models are built for efficiency, making them great for racers or anyone else who wants to cover more ground in less time.
Shimano XT
Shimano XT is the original mountain bike groupset and trusted by generations of mountain bikers around the world. Whatever the trail, wherever you ride, XT is your solution for mountain biking today. Reliable shifting. Superior braking. Intuitive maintenance. XT is the high performance workhorse you can count on.
| Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR |
|---|---|
| *Fork | Size: XS RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Lite, 80mm travel |
| Size: S RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Lite, 100mm travel | |
| Size: M, M/L, L, XL, XXL RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel | |
| Max compatible fork travel | 120mm, XS: 100mm |
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR |
| *Rim | Size: XS, S, M, M/L, L, XL, XXL Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| Size: XS, S, M, M/L, L, XL, XXL Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve | |
| Spokes | 14g stainless steel |
| *Tire | Size: XS, S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5×2.35” |
| Size: M, M/L, L, XL, XXL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29×2.35” | |
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 27.5×2.80″ or 29×2.40″, Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| *Crank | Size: XS, S, M Shimano MT511, 30T steel ring, 52mm chainline, 170mm length |
| Size: M/L, L, XL, XXL Shimano MT511, 30T steel ring, 52mm chainline, 175mm length | |
| *Bottom bracket | Size: XS, S, M, M/L, L, XL, XXL Shimano BB-MT501 BSA |
| Size: XS, S, M, M/L, L, XL, XXL Shimano SM-BB52, 73mm, threaded external bearing | |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x: 32T |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost | Size: XS, S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length | |
| Size: M/L, L, XL, XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |
| *Handlebar | Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S, M Bontrager alloy, 31.8mm, 5mm rise, 720mm width | |
| Size: M/L, L, XL, XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width | |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS, S Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| Size: M, M/L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length | |
| Size: L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length | |
| Size: XL, XXL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length | |
| Headset | Semi-integrated, loose ball bearing, 1-1/8” top, 1.5” bottom |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS, S, M, M/L, L, XL, XXL Shimano RT26, 6-bolt,160mm |
| Size: L, XL, XXL Shimano RT26, 6-bolt,180mm | |
| Brake Set | Shimano MT200 hydraulic disc |
| Weight | M – 13.05 kg / 28.78 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Size | Rider Height | Inseam |
|---|---|---|
| XS | 145 – 155 cm 4’9″ – 5’1″ | 69 – 73 cm 27″ – 29″ |
| S | 155 – 165 cm 5’1″ – 5’5″ | 74 – 78 cm 29″ – 31″ |
| M | 165 – 176 cm 5’5″ – 5’9″ | 79 – 83 cm 31″ – 33″ |
| M/L | 173 – 180 cm 5’8″ – 5’11” | 81 – 86 cm 32″ – 34″ |
| L | 177 – 188 cm 5’10” – 6’2″ | 84 – 89 cm 33″ – 35″ |
| XL | 188 – 195 cm 6’2″ – 6’5″ | 89 – 91 cm 35″ – 36″ |
| 2XL | 195 – 203 cm 6’5″ – 6’8″ | 91 – 97 cm 36″ – 38″ |
