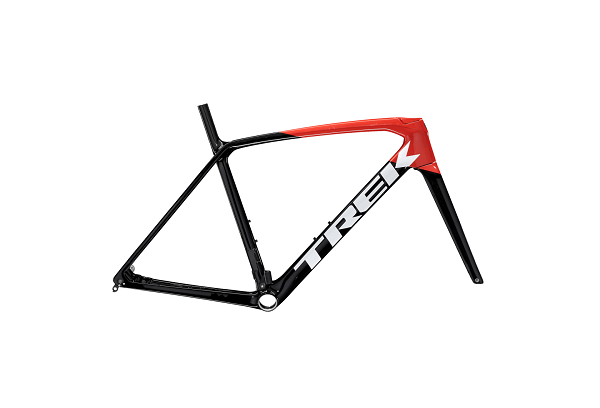

Trek Émonda SL Disc Frameset Road Bike
All-new aero design
Faster on climbs, faster on the flats. The aero tube shapes on the all-new Émonda give you an advantage wherever you’re riding. Plus, Émonda SLR is equipped with a sleek new Aeolus RSL bar/stem for front-end aero performance.
Awesome bikes for everyone
Every rider—regardless of gender, body type, riding style, or ability—deserves a great bike. The all-new Émonda is equipped with size-specific components that deliver a great fit to competitive riders of all genders.
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
| Frame fit | H1.5 Race |

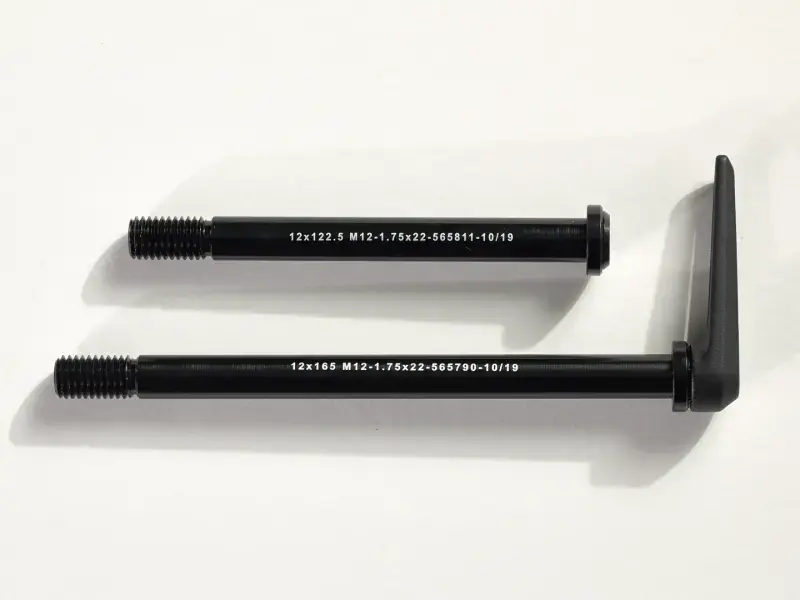

| Skewer front | Bontrager Switch thru axle, removable lever |
|---|---|
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Max tire size | 28c |
| Front derailleur | Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs) |
|---|---|
| Max chainring size | 1x: 50T, 2x: 53/39 |
| Seatpost | Not included |
|---|---|
| Rotor size | Max brake rotor sizes: 160mm front & rear |
| Weight | 1245g – 56cm (frame-only, painted) 384g (fork-only, painted) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Size | Rider Height | Inseam |
|---|---|---|
| 47 |
152 – 158 cm 5’0″ – 5’2″ |
71 – 75 cm 28″ – 30″ |
| 50 |
158 – 163 cm 5’2″ – 5’4″ |
74 – 77 cm 29″ – 30″ |
| 52 |
163 – 168 cm 5’4″ – 5’6″ |
76 – 79 cm 30″ – 31″ |
| 54 |
168 – 174 cm 5’6″ – 5’9″ |
78 – 82 cm 31″ – 32″ |
| 56 |
174 – 180 cm 5’9″ – 5’11” |
81 – 85 cm 32″ – 33″ |
| 58 |
180 – 185 cm 5’11” – 6’1″ |
84 – 87 cm 33″ – 34″ |
| 60 |
185 – 190 cm 6’1″ – 6’3″ |
86 – 90 cm 34″ – 35″ |
| 62 |
190 – 195 cm 6’3″ – 6’5″ |
89 – 92 cm 35″ – 36″ |
| 64 |
195 – 200 cm 6’5″ – 6’7″ |
91 – 94 cm 36″ – 37″ |
