• Frame

  • Canyon Spectral YH
  • Aluminium frame in size 2XS with suspension kinematics specially tuned for smaller riders.
  • Axle dimension: 12×148 mm
  • Material: Aluminium (AL)

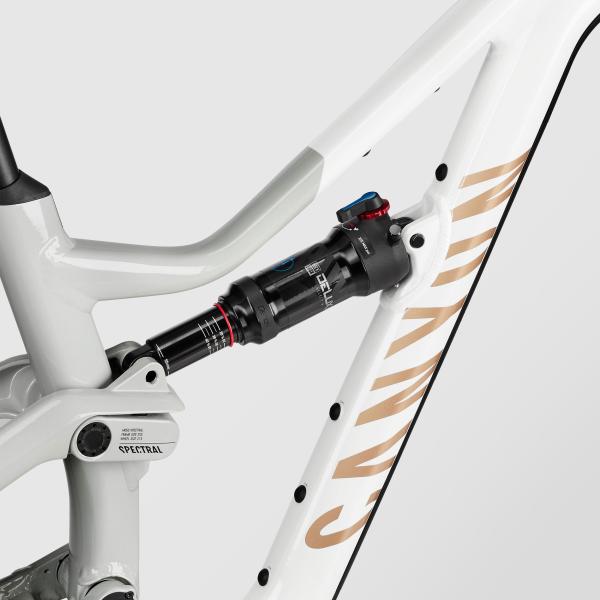

• Rear Shock

  • RockShox Deluxe Select+
• Suspension Fork

  • RockShox Recon Silver RL
  • Axle dimension: 15×110 mm
  • Stanchion Diameter: 32 mm
  • Travel: 140 mm
  • Fork steer tube diameter: 1 1/8″ – 1,5″
  • Offset: 37 mm

• Rear Derailleur

  • SRAM SX Eagle 12s
• Shift Lever

  • SRAM SX Eagle Trigger 12s
  • SX Eagle’s 12-speed shifters offer quick and crisp gear changes.
• Cassette

  • SRAM PG-1210 Eagle 11-50 12s
  • SRAM’s SX Eagle 11-50 cassette packs a wide, 454% gear range into a surprisingly affordable package.
  • Number of sprockets: 12
• Crank

  • SRAM SX Eagle 30T
  • Number of chainrings: 1
• Bottom bracket

  • SRAM Pressfit DUB
  • No noise, no fuss bottom bracket from SRAM that will keep running smoothly for years.
  • Bottom bracket standard: PF 92
• Chain

  • SRAM SX Eagle 12s

• Disc Brake

  • SRAM Guide T
• Disc Brake

  • SRAM Guide T
• Brake Rotor

  • SRAM Centerline, 180mm
  • Size: 180 mm

• Wheel

  • RaceFace AR25 | Shimano MT400
  • Rotor mount: Center Lock
  • Wheelsize: 27,5″
• Wheel

  • RaceFace AR25 | Shimano MT400 S11
  • Rotor mount: Center Lock
  • Wheelsize: 27,5″
• Tyre

  • MAXXIS Minion DHF 27.5X2.3
  • Width: 2.3″
• Tyre

  • MAXXIS Aggressor 27.5X2.3
  • Width: 2.3″
• Thru Axle

  • Canyon GP0225-01 Thru Axle 148×12
  • Canyon Thru Axle. Boost standard for high stiffness.
  • The Thru Axle is only combined with the rear wheel.
  • Dimensions: 148 x 12 mm

• Stem

  • Canyon G5 Stem
  • Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails.
  • Fork steer tube diameter: 1 1/8″
  • Clamping diameter: 31,8 mm
• Handlebar

  • Canyon H15 Riserbar
  • Canyon H15 aluminium handlebar.
  • Rise: 15 mm.
• Grips

  • Canyon G5 Grips
  • Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar.

• Saddle

  • Canyon Sport Saddle EP1249
  • Canyon Sport Saddle
• Seatpost

  • Iridium Dropper Post
  • Handlebar switch-operated dropper post.
  • Travel: 125 mm.
  • Seatpost diameter: 30.9 mm.
  • Clamp diameter: 30,9 mm
  • Material: Aluminium (AL)

• Pedals

  • None included
• Manuals and Accessories

  • Canyon Bag
  • Storage box for tools and replacement parts.
• Manuals and Accessories

  • Canyon Smallbox
  • Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
