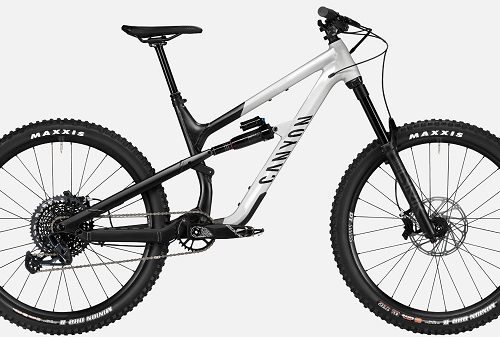

Canyon Spectral 27 AL 6 Mountain Bikes
Frame
- Frame
- Canyon Spectral AL
- Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4.
- Axle dimension: 12×148 mm
- Material: Aluminium (AL)
- Rear Shock
- ROCKSHOX Super Deluxe Select+ RT
- Suspension Fork
- ROCKSHOX LYRIK SELECT+ RC
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8″ – 1,5″
Drivetrain
- Rear Derailleur
- SRAM GX Eagle, 12-speed
- Cage Lock and Roller Bearing Clutch technologies
- 12-speed
- Max cassette size: 52T
- Weight: 290 g
- Shift Lever
- SRAM GX Eagle
- SRAM’s GX Eagle 12-speed shifters fire off quick and accurate gear shifts.
- Cassette
- SRAM GX Eagle, 12-speed (10-52)
- Cassette size: 10-52T
- Gear range: 520%
- Crank
- Descendant 6K
- Number of chainrings: 1
- Bottom bracket
- SRAM BSA DUB
- Hassle-free SRAM DUB threaded bottom bracket.
- Bottom bracket standard: BSA 73
- Chain
- SRAM SX Eagle 12s
Brakes
- Disc Brake
- SRAM Code R
- Disc Brake
- SRAM Code R
- Brake Rotor
- SRAM Centerline, 200mm
- SRAM’s 200mm Centerline front rotor ensures you always have stopping power to spare.
Wheels
- Wheel
- DT Swiss AM LN 370
- Axle dimension: 15×110 mm
- Rotor mount: IS 6-bolt
- Wheelsize: 27.5″
- Wheel
- DT Swiss AM LN 370
- Rotor mount: IS 6-bolt
- Wheelsize: 27.5″
- Tyre
- MAXXIS Minion DHR II 2.4”
- Casing: Exo
- Compound: 3C Maxx Terra
- Technology: Tubeless ready
- Tyre
- Maxxis Minion DHRII 3C MaxxTerra EXO+ 2,4×27,5″
- Wheelsize: 27.5″
- Thru Axle
- Canyon GP0255-01 Thru Axle
- Axle dimension: 12×148 mm
Cockpit
- Stem
- Canyon G5 Stem
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails.
- Fork steer tube diameter: 1 1/8″
- Clamping diameter: 31,8 mm
- Handlebar
- Canyon G5 Riser Bar
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Width: 780 mm
- Rise: 30 mm
- Grips
- Canyon G5 Grips
- Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar.
Seat
- Saddle
- Ergon SM10 Enduro
- Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain.
- Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Clamp diameter: 30,9 mm
- Material: Aluminium (AL)
Accessories
- Pedals
- None included
- Manuals and Accessories
- Canyon Bag
- Storage box for tools and replacement parts.
- Manuals and Accessories
- Canyon Smallbox
- Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
- Manuals and Accessories
- Canyon Quick Start Guide
