• Frame

  • Aeroad CFR Disc

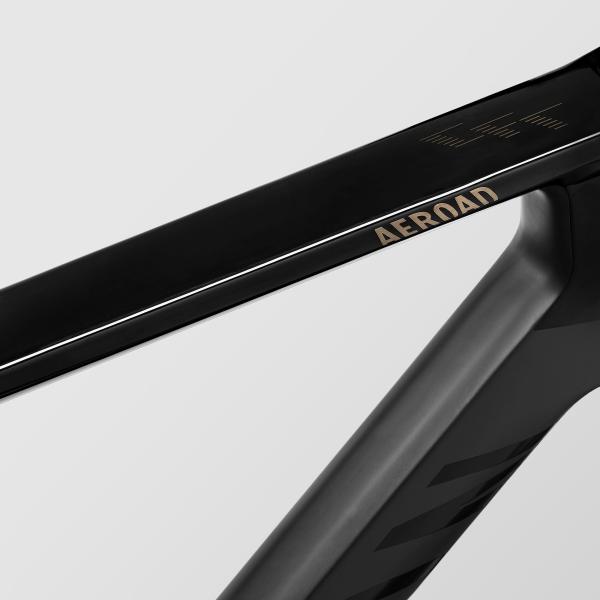

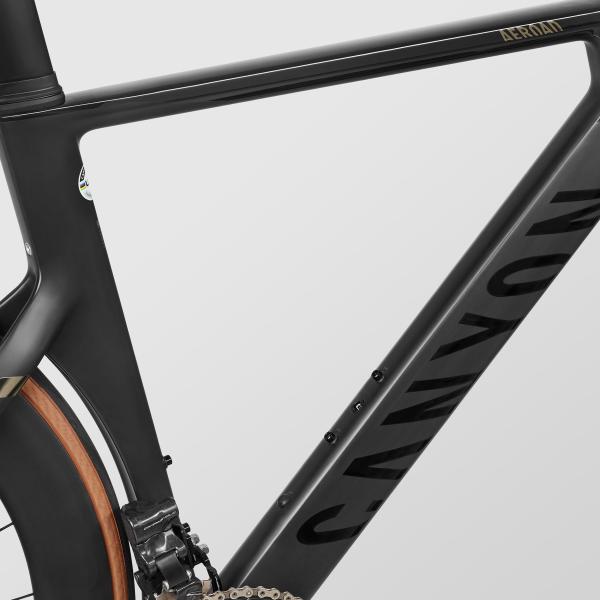

  • Canyon Factory Racing R065 aero carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12×142 mm through axle, flat-mount disc standard. Weight: 915 g

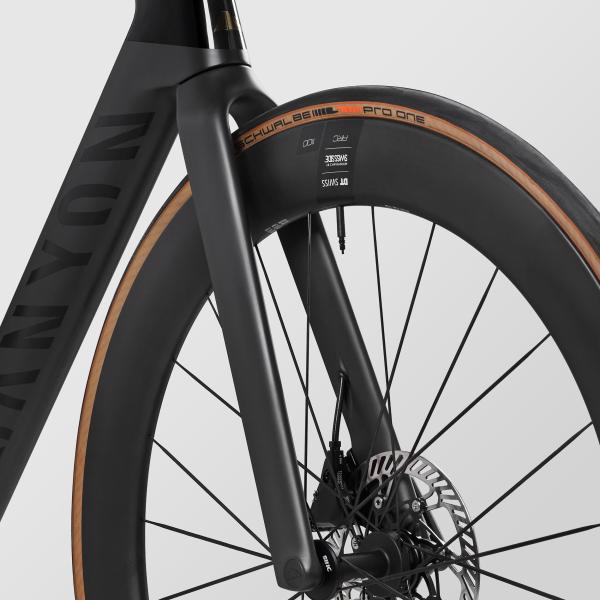

• Fork

  • Canyon FK0060 CF Disc
  • All-new design, 12×100 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g

• Rear Derailleur

  • Campagnolo Super Record EPS, 12-speed
  • Short cage design, 12-speed, with multishifting tech and position sensor
• Front Derailleur

  • Campagnolo Super Record EPS
  • For 2×12 drivetrains, with auto-repositioning, braze-on mount
• Chainguard

  • Campagnolo
  • Protects the frame from damage if the chain falls off when riding. Recommended for use with braze-on front derailleurs.
• Cassette

  • Campagnolo Super Record, 12-speed, 11-29
  • 12-speed, gear range: 11-29T. Closer sprockets ensure faster, quieter and more precise shifting
• Crank

  • Campagnolo Super Record, 12-speed
  • 2×12-speed, gearing: 52/36
• Bottom bracket

  • Campagnolo Ultra-Torque Pressfit
  • This bottom bracket sets the benchmark in terms of durability, lightness, power transfer, and stiffness.
  • Bottom bracket standard: BB86
  • BB shell inner diameter: 41 mm
  • BB shell width: 86.5 mm
  • Bottom bracket standard: PF 86,5
• Chain

  • Campagnolo Record 12-speed
  • With ultra-link tech for added durability, special material treatment for more smoothness

• Shift-/ Brake Lever

  • Campagnolo Super Record EPS Disc, 12-speed
  • Left-hand Ergopower shifter. 12-speed, electronic shifting, reach adjustment, adjustable modulation system
• Shift-/ Brake Lever

  • Campagnolo Super Record EPS Disc, 12-speed
  • Right-hand Ergopower shifter. 12-speed, electronic shifting, reach adjustment. With multi-shift technology and adjustable modulation system
• Brake Rotor

  • Campagnolo 03 AFS
  • With rounded edges for easier wheel installs, heat-resistant design

• Wheel

  • DT Swiss ARC 1100 Dicut
  • Front wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings.
  • Tubeless-ready
  • Inner width: 20mm
  • Weight: 776g
  • Rotor mount: Center Lock
• Wheel

  • DT Swiss ARC 1100 Dicut
  • Rear wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready.
  • Rim depth: 62 mm
  • Inner width: 20 mm
  • Driver: Shimano 11-speed road
  • Weight: 900 g
  • Rotor mount: Center Lock
  • Rim height: 62 mm
  • Wheelsize: 28″
• Tyre

  • Schwalbe Pro One, 25mm
  • High-end road tyre that combines suppleness, speed, and control at the highest level.
  • Tech: tubeless-ready, v-guard puncture protection
  • Compound: Addix Race
• Tyre

  • Schwalbe Pro One, 28mm
  • High-end road tyre that combines suppleness, speed, and control at the highest level.
  • Tech: tubeless-ready, v-guard puncture protection
  • Compound: Addix Race
• Thru Axle

  • DT Swiss through axle without lever
  • Aluminium construction.
  • Dimensions: 12×100 mm
  • Thread pitch: 1.75 mm
  • Axle dimension: 12×100 mm
• Thru Axle

  • DT Swiss through axle with lever
  • Aluminium construction.
  • Thread pitch: 1.75 mm
  • Axle dimension: 12×142 mm

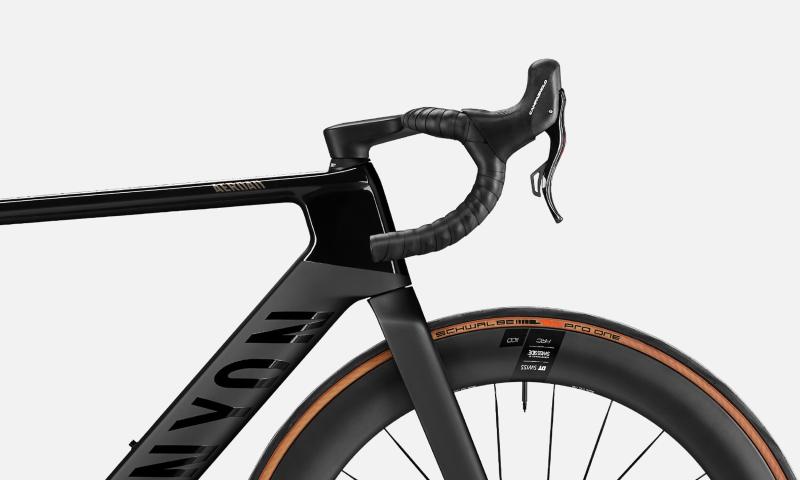

• Cockpit

  • Canyon CP0018 Aerocockpit
  • Aero design, reinforced carbon walls for added stiffness and improved durability.
  • Easy width adjustment: +/-20 mm
  • Cut-free height adjustment: 15 mm
  • Weight: 440 g
  • Material: Carbon (CF)
• Handlebar Tape

  • Canyon Ergospeed Gel
  • Bar tape with EVA foam and elastomer gel mix for optimal comfort.
  • Color: black

• Saddle

  • Selle Italia SLR Boost Superflow Kit Carbonio
  • Superlight saddle with carbon rails, modern short-nose design and unisex ergonomics.
  • Width: 130mm (S)
  • Rail material: carbon (oval)
  • Weight: 122 g
  • Gender: Unisex
• Seatpost

  • Canyon SP0046 Aero Seatpost
  • Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
  • Clamp diameter: 27,2 mm

• Pedals

  • None included
• Manuals and Accessories

  • Canyon Bag
  • Storage box for tools and replacement parts.
• Manuals and Accessories

  • Canyon starter box
  • All you need to get riding: Quick Start Guide, manual, torque wrench incl. bit set, assembly paste.
