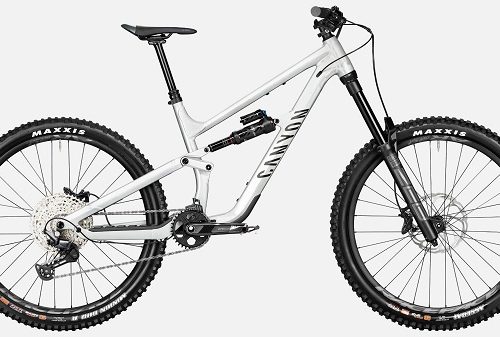

Canyo Torque 29 AL 5 Mountain Bikes
Frame
- Frame
- Canyon Torque AL
- Axle dimension: 12×148 mm
- Material: Aluminium (AL)
- Rear Shock
- RockShox Super Deluxe Select+
- Ready for the big hits while being smooth and precise on trail thanks to a tuneable Debonair spring.
- Suspension Fork
- ROCKSHOX ZEB SELECT
- Axle dimension: 15×110 mm
- Stanchion Diameter: 38 mm
- Travel: 170 mm
- Fork steer tube diameter: 1 1/8″ – 1,5″
Drivetrain
- Rear Derailleur
- Shimano Deore, 12-speed
- 1×12 drivetrain for simpler, intuitive shifting. Long-cage design is compatible with wide-range cassettes.
- Chainguard
- Canyon Chainguide
- Shift Lever
- Shimano Deore M6100 12speed
- Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment.
- 133 g
- Cassette
- Shimano Deore M6100 12speed
- Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness.
- Gear range: 10-51
- Crank
- Shimano Deore FC-M6120-1
- Number of chainrings: 1
- Bottom bracket
- Shimano BSA BB52
- Bottom bracket standard: BSA HT2 68/73
- Chain
- Shimano CN-M6100 12s
Brakes
- Disc Brake
- Shimano Deore M6120
- Disc Brake
- Shimano Deore
- High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
- Brake Rotor
- Rotor Hayes, 203 mm
- Size: 203 mm
Wheels
- Wheel
- RaceFace AR30 | Shimano MT400
- Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width
- Wheel
- RaceFace AR30 | Shimano MT510 SH12
- Rotor mount: Center Lock
- Wheelsize: 29″
- Tyre
- MAXXIS MINION DHR 2 3C MaxxTerra
- Width: 2.4″
- Tyre
- MAXXIS ASSEGAI 3C MaxxGrip
- Width: 2,5″
- Thru Axle
- Canyon Quixle Thru Axle
- The Canyon Quixle combines the stiffness of a through axle with the ease-of-use of a quick-release. You can quickly remove the rear wheel without tools. The handle discreetly slides into the axle after usage. The Quixle is only combined with the rear wheel.
- Axle dimension: 12×148 mm
Cockpit
- Stem
- Canyon G5 Stem
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails.
- Fork steer tube diameter: 1 1/8″
- Clamping diameter: 31,8 mm
- Handlebar
- Canyon G5 Riser Bar
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Width: 780 mm
- Rise: 30 mm
- Grips
- Canyon G5 Grips
- Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar.
Seat
- Saddle
- Fizik Gravita Alpaca X5
- Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Clamp diameter: 30,9 mm
- Material: Aluminium (AL)
Accessories
- Pedals
- None included
- Manuals and Accessories
- Canyon Bag
- Storage box for tools and replacement parts.
- Manuals and Accessories
- Canyon Smallbox
- Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
- Manuals and Accessories
- Quick Start Guide Torque M113
