Vitus Escarpe 29 Crx Mountain Bike Frame 2021

US$ 1,199.00
(1 customer review)

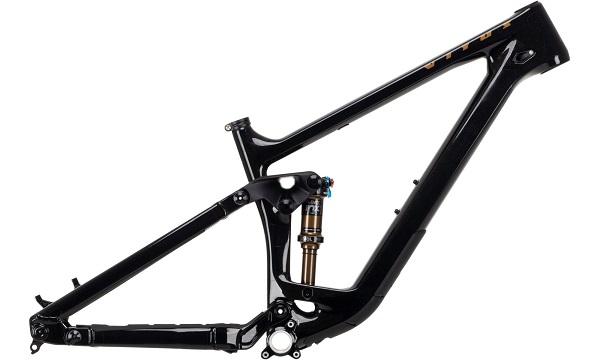

Vitus Escarpe 29 Crx Mountain Bike Frame 2021

Vitus has engineered this bike with a redesigned carbon front triangle paired with an aluminium rear end. This trail-optimised frame with its revamped geometry and improved suspension kinematics ensure the Escarpe climbs efficiently on the way up and descends with playful confidence on the way back down and takes your riding to the next level.

Size Guide
Image Size Guide
Clear
SKU: RC-VITUS202300442 Category: Brand:

Vitus Escarpe 29 Crx Mountain Bike Frame 2021

Carbon/Alloy Trail Optimised Frameset

Vitus has engineered this bike with a redesigned carbon front triangle paired with an aluminium rear end. This trail-optimised frame with its revamped geometry and improved suspension kinematics ensure the Escarpe climbs efficiently on the way up and descends with playful confidence on the way back down and takes your riding to the next level.

Stable and Sensitive All-Mountain Suspension Performance

We have straightened the leverage curve and increased the progressivity to improve the small bump sensitivity and mid stroke support to keep you in control when the trails get rough. Along with improved geometry the new Escarpe also has improved seat post insertion which allows for a longer dropper post to be fitted as standard ensuring you get the most comfortable riding position on the way up and back down. Basically, the Escarpe CRX is better in every way. If you want a confidence inspiring all mountain bike that can climb as well as a trail bike and descend like an enduro bike, then the Vitus Escarpe is for you.

Specifications

Material Ultra Strong T700 Carbon Front/6061 Aluminium Rear
Fork Travel (Recommended) 150mm
Axle to Crown (Recommended) 561mm
Fork Offset (Recommended) 42mm
Rear Travel 140mm
Wheels Size 29″
Max Tyre Size 2.5″
Recommended Shock Sag (Measured seated) 30%
Shock Size 205x60mm
Shock Hardware F Trunnion
Shock Hardware R 30x8mm
Sizing S/M/L/XL
Headtube 44-56mm Tapered Semi-Integrated
Headset OD44, 44/28.6 – 56/40
Bearings Required 4x (6901-2RS) 6 x (6802V-2RS) 2 x (6902-2RS)
Seatpost 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp 36.4mm
BB Threaded 73mm BSA
Rear Hub Boost 148x12mm
Rear Axle SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
Chain Guide ISCG05
Brake Mount 180mm Direct Post
Protection 3D Contoured Rubber Frame Protection for DT/SS/CS
size

L, M, S, XL, XS

color

GOLD DUST
