Trek Top Fuel 9.7 Mountain Bike

US$ 3,289.00
(3 customer reviews)

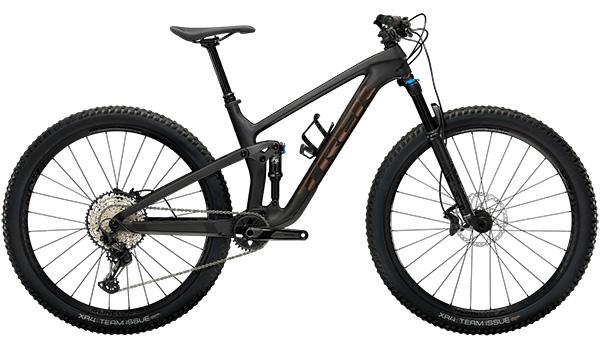

Trek Top Fuel 9.7 Mountain Bike

Top Fuel 9.7 is a quick and nimble full suspension carbon mountain bike that fuses the flat-out speed of a cross country bike with the trail-munching appetite of a trail bike. It lets you fly up climbs, hammer through flat sections, and keep on truckin’ on rough descents.

Size Guide
Image Size Guide
Clear
GTIN: 85959219 SKU: TREKMTB2023010091 Category:

Trek Top Fuel 9.7 Mountain Bike

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Quick and in control

120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

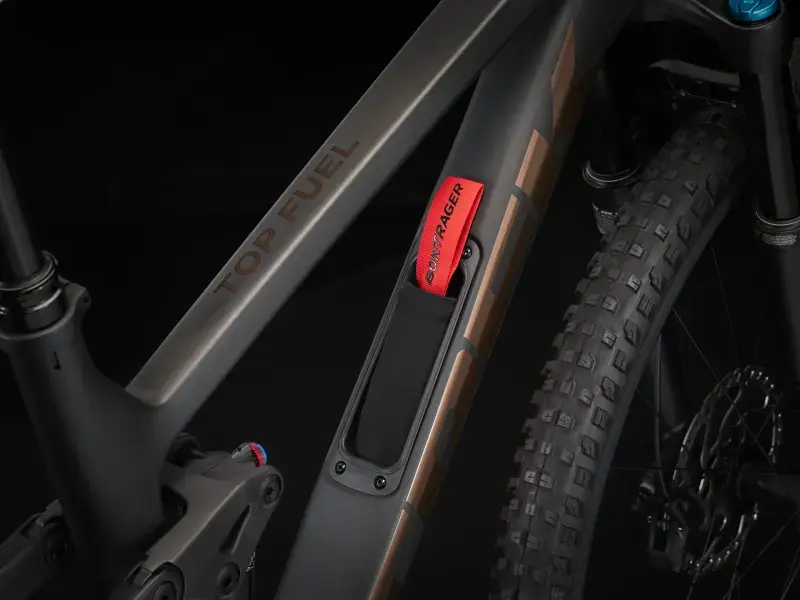

Internal Storage

Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

Hassle-free routing

Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

Will my bike have a curved top tube?

Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Shimano XT

Shimano XT is the original mountain bike groupset and trusted by generations of mountain bikers around the world. Whatever the trail, wherever you ride, XT is your solution for mountain biking today. Reliable shifting. Superior braking. Intuitive maintenance. XT is the high performance workhorse you can count on.

FrameOCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
ForkFox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 120mm travel

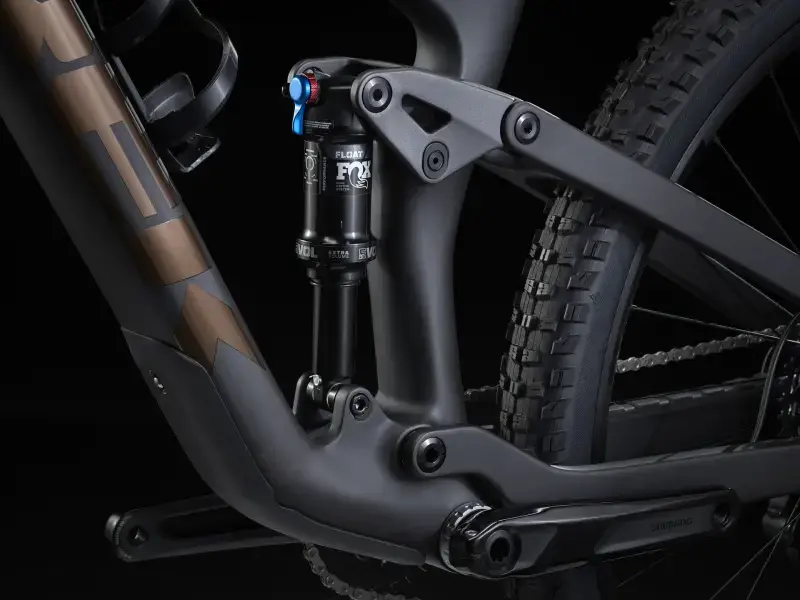

ShockFox Performance Float DPS, 3-position damper, 185mm x 50mm
Max compatible fork travel130mm (541mm axle-to-crown)
Wheels
Wheel frontBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
*Wheel rearSize: XS
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle
Size: S, M, M/L, L, XL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Skewer rearBontrager Switch thru axle, removable lever
*TireSize: XS
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 27.5×2.40”
Size: S, M, M/L, L, XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29×2.40”
Tire partBontrager TLR sealant, 6oz
Rim stripBontrager TLR
Max tire sizeFrame: 29×2.50″ (XS: 27.5×2.50″), Fork: see manufacturer
Drivetrain
ShifterShimano XT M8100, 12 speed

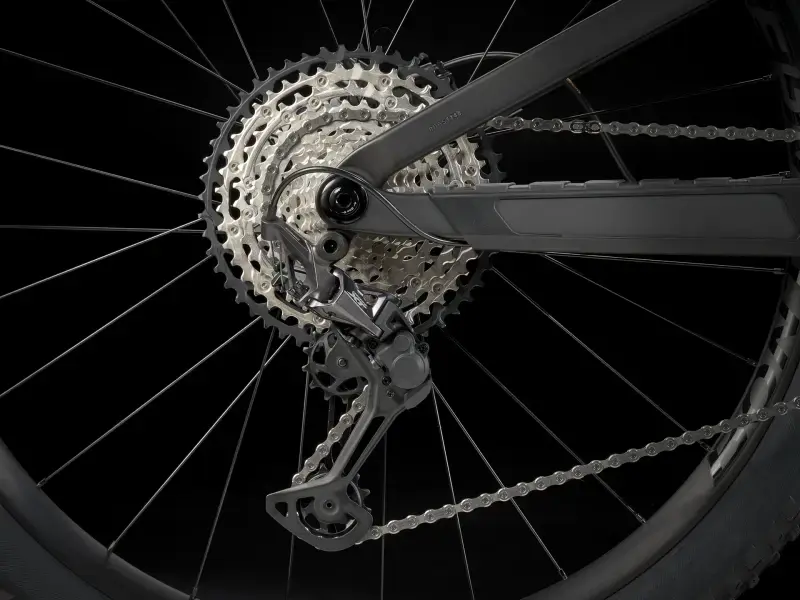

Rear derailleurShimano XT M8100, long cage
*CrankSize: XS, S, M, M/L, L
Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
Size: XL
Shimano Deore M6120, 30T ring, 55mm chainline, 175mm length
*Bottom bracketSize: XS, S, M, M/L, L, XL
Shimano BB-MT501 BSA
Size: XS, S, M, M/L, L, XL
Shimano SM-BB52, 73mm, threaded external bearing
CassetteShimano SLX M7100, 10-51, 12 speed
ChainShimano SLX M7100, 12 speed
Max chainring size1x: 36T round, 34T oval, min 28T
Components
SaddleBontrager Arvada, steel rails, 138mm width
*SeatpostSize: XS, S
TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm
Size: M, M/L
TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm
Size: L, XL
TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm
*HandlebarSize: XS, S
Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width
Size: M, M/L, L, XL
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
GripsBontrager XR Trail Comp, nylon lock-on

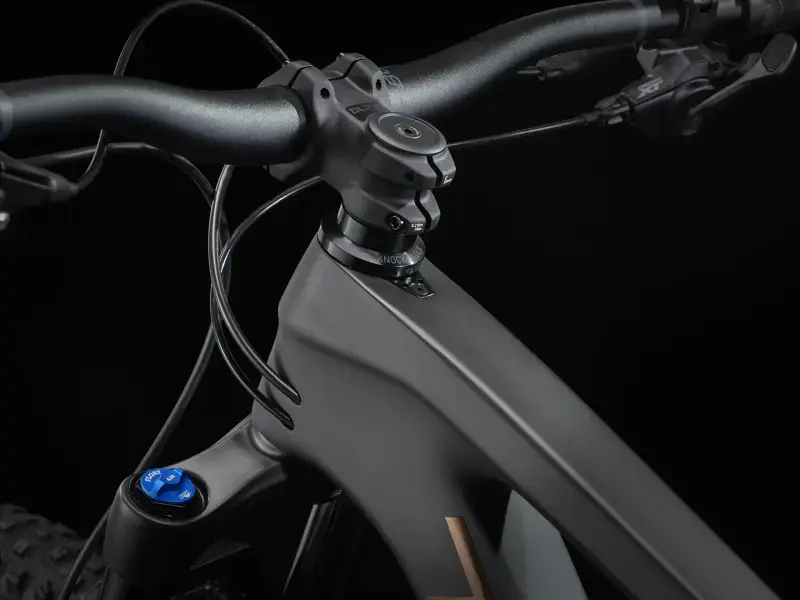

StemBontrager Elite, 35mm, 0 degree, 45mm length
HeadsetKnock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8” top, 1.5” bottom

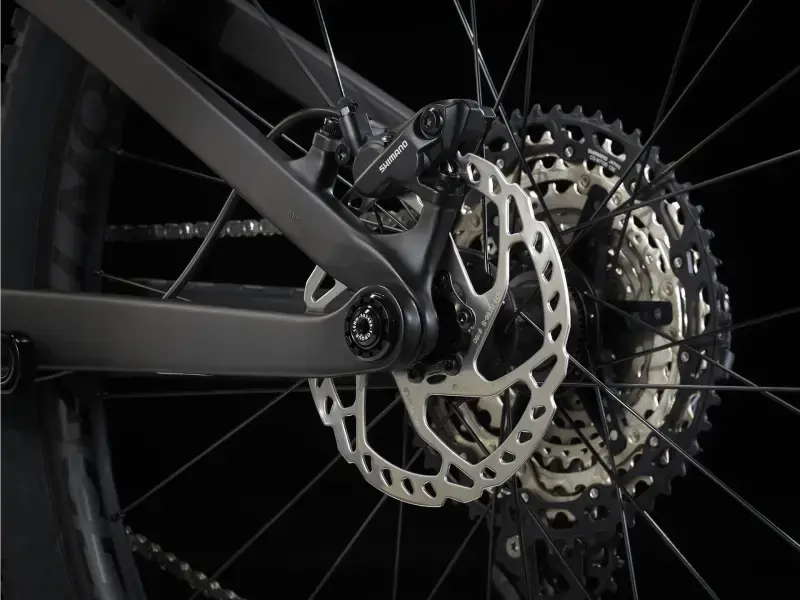

BrakeShimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
*Brake rotorSize: XS, S, M, M/L, L, XL
Shimano RT66, 6-bolt, 160mm
Size: XS, S, M, M/L, L, XL
Shimano RT66, 6-bolt, 180mm
Accessories
BagBontrager BITS Internal Frame Storage Bag
Weight
WeightM – 13.38 kg / 29.51 lbs (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
SizeRider HeightInseam
XS

145 – 155 cm

4’9″ – 5’1″

69 – 73 cm

27″ – 29″

S

155 – 165 cm

5’1″ – 5’5″

74 – 78 cm

29″ – 31″

M

165 – 176 cm

5’5″ – 5’9″

79 – 83 cm

31″ – 33″

M/L

173 – 180 cm

5’8″ – 5’11”

81 – 86 cm

32″ – 34″

L

177 – 188 cm

5’10” – 6’2″

84 – 89 cm

33″ – 35″

XL

188 – 195 cm

6’2″ – 6’5″

89 – 91 cm

35″ – 36″

size

L, M, S, XL

color

Hex Blue, Matte Raw Carbon
