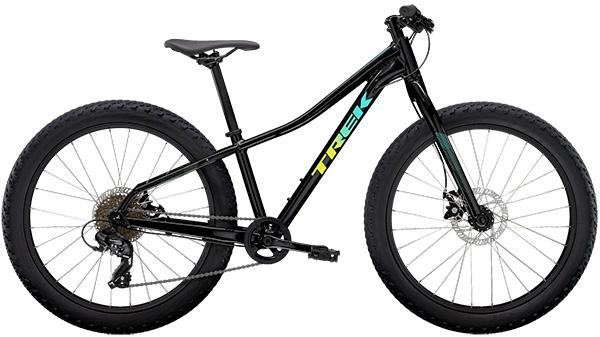

Trek Roscoe 24 Mountain Bike
Wider 2.8in tire
Wider tires instill confidence and control on the trail.
| Frame | Alpha Aluminum, 24” |
|---|---|
| Fork | Roscoe 24” alloy |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 100mm ThruSkew |
|---|---|
| Skewer front | 132x5mm QR, ThruSkew |
| Hub rear | Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5mm QR |
| Skewer rear | 161x5mm QR |
| Rim | 24” alloy, 28-hole, schrader valve |
| Tire | Chen-Shin, 24×2.80” |

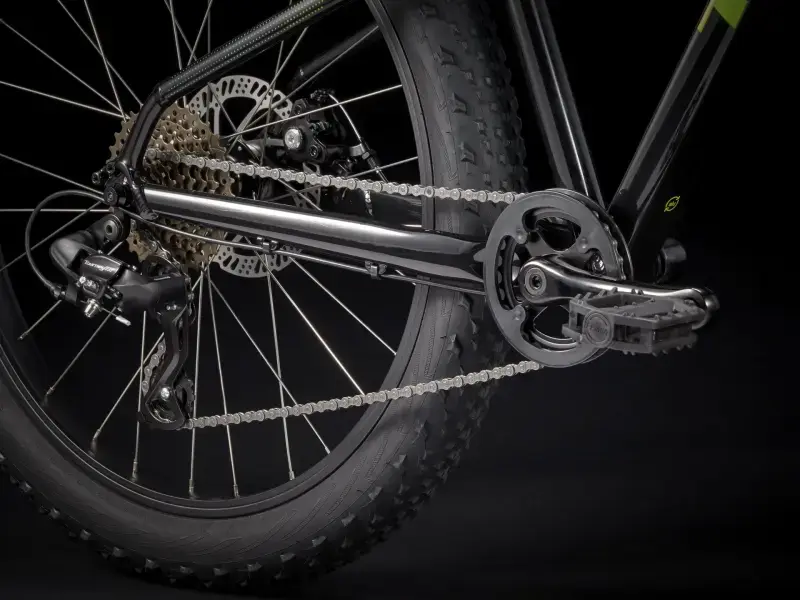

Drivetrain
| Shifter | Shimano Altus M315, 8 speed |
|---|---|
| Rear derailleur | Shimano Tourney TX80 |
| Crank | Alloy, 28T chain ring w/guard, 152mm length |
| Bottom bracket | Sealed cartridge |
| Cassette | SunRun cassette, 11-34, 8 speed |
| Chain | KMC Z8.3, 8 speed |
| Pedal | Kids’ 9/16” |
Components
| Saddle | Kid’s 24” size, padded |
|---|---|
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 250mm length |

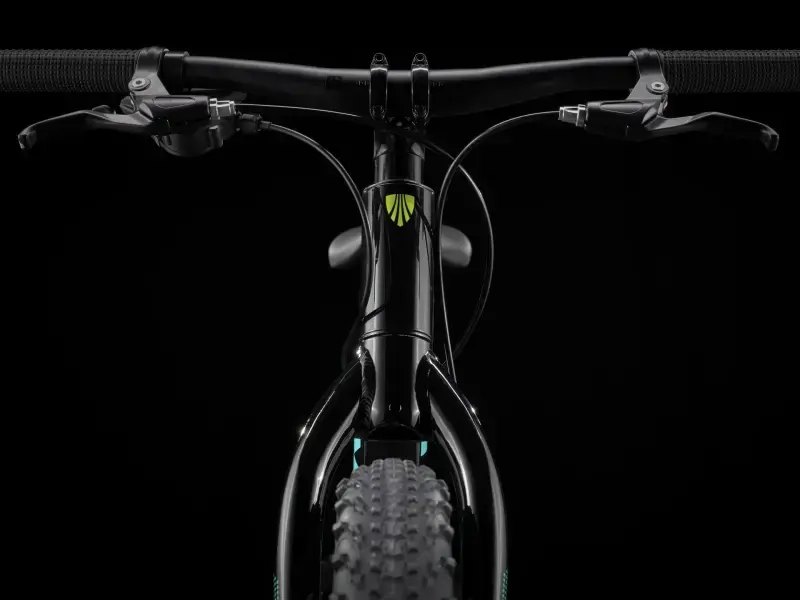

| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 580mm width |
| Grips | Kids’ Kraton |
| Stem | Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| Headset | VP 1-1/8”, semi-Integrated |

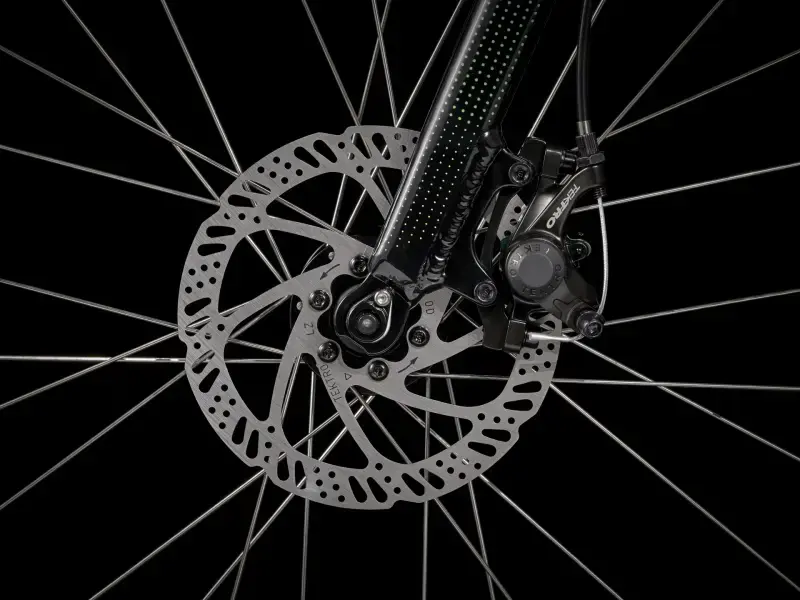

| Brake | Tektro MD-M280 mechanical disc, 160mm rotor |
| Brake lever | Kids’ alloy brake lever, black |
Weight
| Weight | 11.60 kg / 25.58 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 175 pounds (80 kg). |
| Size | Rider Height |
|---|---|
| 12″ wheel |
86 – 102 cm 2’10” – 3’4″ |
| 16″ wheel |
99 – 117 cm 3’3″ – 3’10” |
| 20″ wheel |
114 – 132 cm 3’9″ – 4’4″ |
| 24″ wheel |
130 – 150 cm 4’3″ – 4’11” |
| 26″ wheel |
146 – 160 cm 4’9″ – 5’3″ |
