Trek Rail 7 Gen 2 Mountain Bike

US$ 3,639.00
(3 customer reviews)

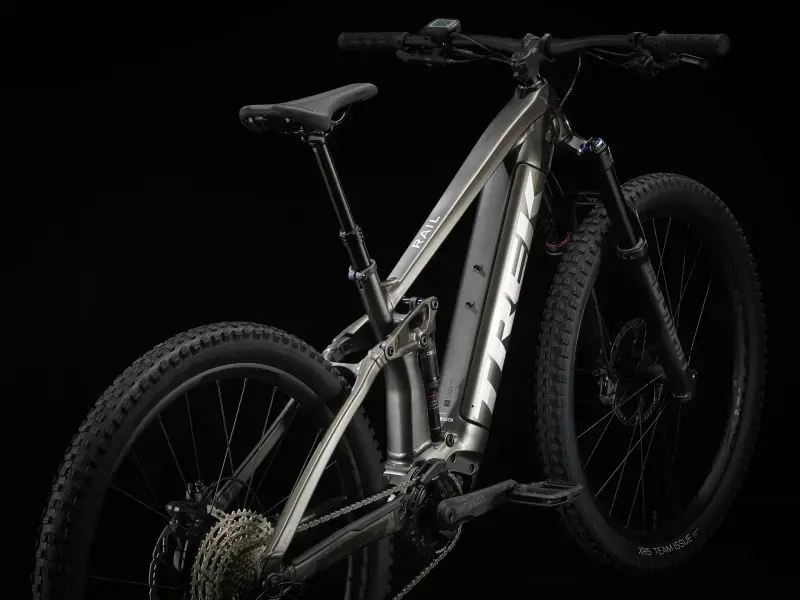

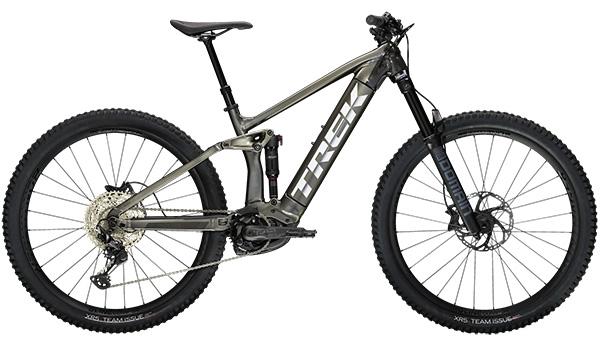

Trek Rail 7 Gen 2 Mountain Bike

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analog trail bikes, an upgraded fork, drivetrain, battery, and more, plus a powerful Bosch drive system that’s basically like having your own shuttle.

Size Guide
Image Size Guide
Clear
GTIN: 87181400 SKU: TREKMTB2023010089 Category:

Trek Rail 7 Gen 2 Mountain Bike

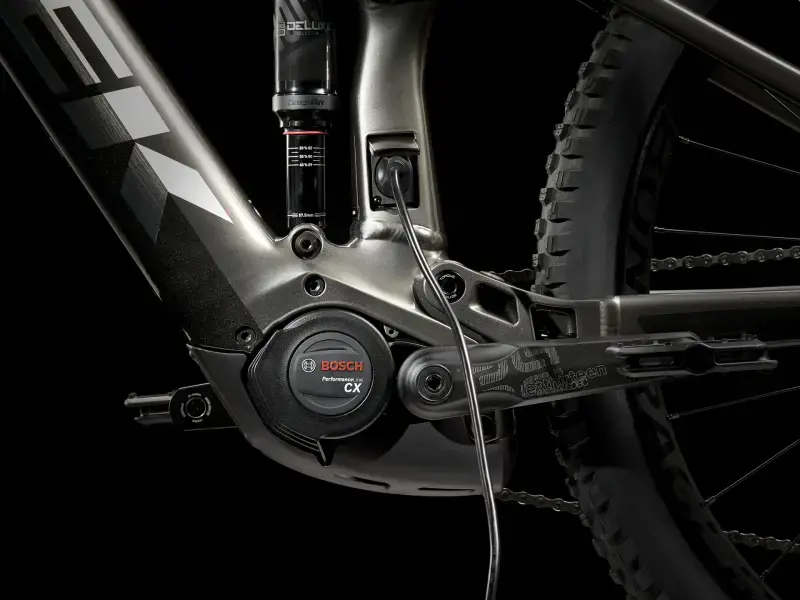

Bosch Performance Line CX motor

Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

Custom eMTB Lite mode

Trek eMTBs feature a custom eMTB Lite mode in place of Tour mode. It gives you more natural-feeling power delivery and longer battery life.

Removable Integrated Battery

RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security, or just easier charging.

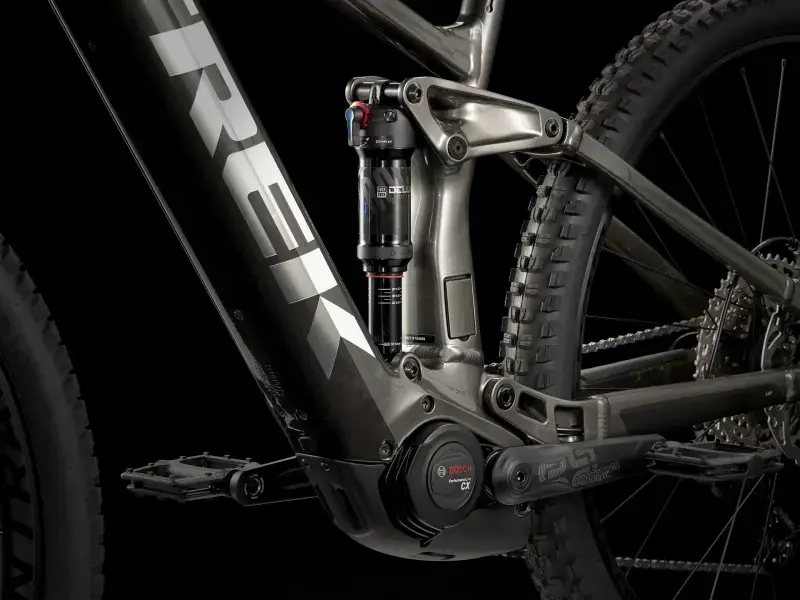

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

What is the range?

To see how far you can ride your electric mountain bike on a single charge, check out Bosch’s range calculator. We’ve auto-filled the variables for this bike model and the average rider, but you can make adjustments to get your most accurate estimate.

FrameAlpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
ForkRockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
ShockRockShox Deluxe Select+, 230mm x 57.5mm
Max compatible fork travel170mm (580mm axle-to-crown)
Wheels
Wheel frontBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rearBontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Skewer rearBontrager Switch thru axle, removable lever
TireBontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50”
Tire partBontrager TLR sealant, 6oz
Rim stripBontrager TLR
Max tire sizeFrame: 29×2.60″, Fork: See manufacturer
Drivetrain
ShifterShimano SLX M7100, 12 speed

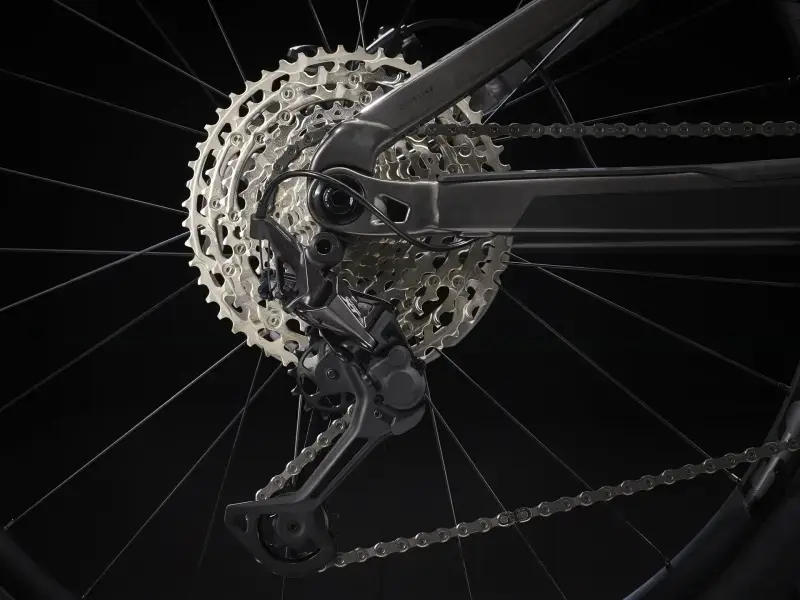

Rear derailleurShimano XT M8100, long cage
CrankE*thirteen E*spec Plus, 165mm length
ChainringE*thirteen, 34T, steel
CassetteShimano Deore M6100, 10-51, 12 speed
ChainShimano SLX M7100, 12 speed
PedalVP-536 nylon platform
Max chainring size1x: 34T
Components
SaddleBontrager Arvada, steel rails, 138mm width
*SeatpostSize: S
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
Size: M, L, XL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
HandlebarBontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
GripsBontrager XR Trail Comp, nylon lock-on
StemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom
BrakeShimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Brake rotorShimano RT76, 6-bolt, 203mm
Accessories
BatteryBosch PowerTube 625Wh
ChargerBosch standard 4A, 100-240V
MotorBosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist

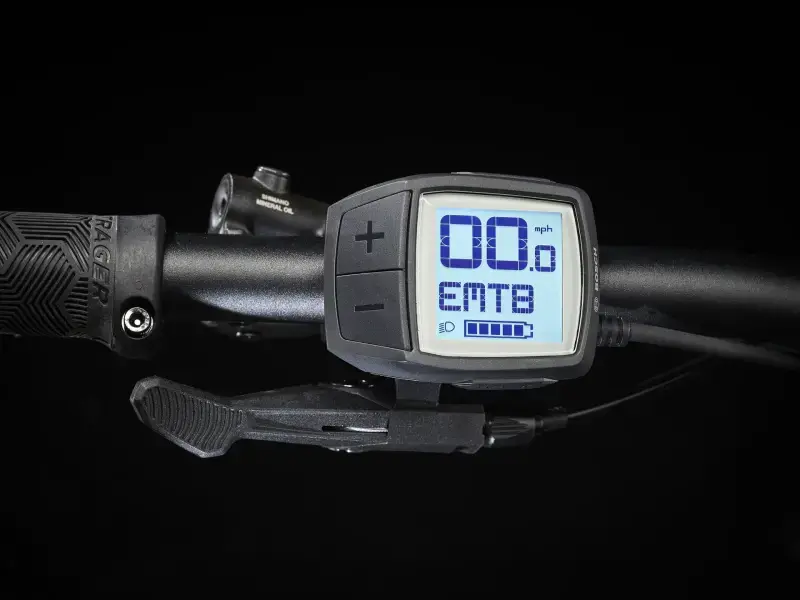

ComputerBosch Purion
Weight
WeightM – 24.01 kg / 52.94 lbs (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
SizeRider HeightInseam
S

153 – 167 cm

5’0″ – 5’6″

72 – 79 cm

28″ – 31″

M

161 – 175 cm

5’3″ – 5’9″

76 – 82 cm

30″ – 32″

L

174 – 188 cm

5’9″ – 6’2″

82 – 88 cm

32″ – 35″

XL

186 – 196 cm

6’1″ – 6’5″

87 – 92 cm

34″ – 36″

size

L, M, S, XL

color

Dark Aquatic/Trek Black, Mercury/Dnister Black
