Trek Madone Slr 9 Gen 7 Road Bike
Unprecedented aerodynamics
All-new aerodynamic Kammtail frame shapes, bar/stem design, and rider position make Madone SLR our fastest road race bike yet.

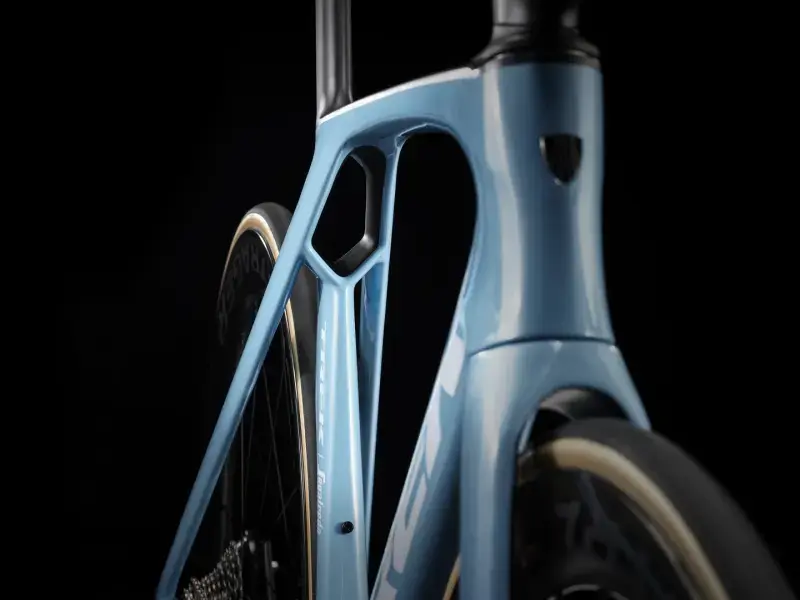

Exclusive IsoFlow technology
Never before seen IsoFlow technology specifically designed for the 7th generation Madone SLR shaves weight, improves aerodynamics, and smooths your ride.
Our lightest Madone disc ever
Super lightweight 800 Series OCLV Carbon and a new lightweight design make this our lightest Madone disc ever.

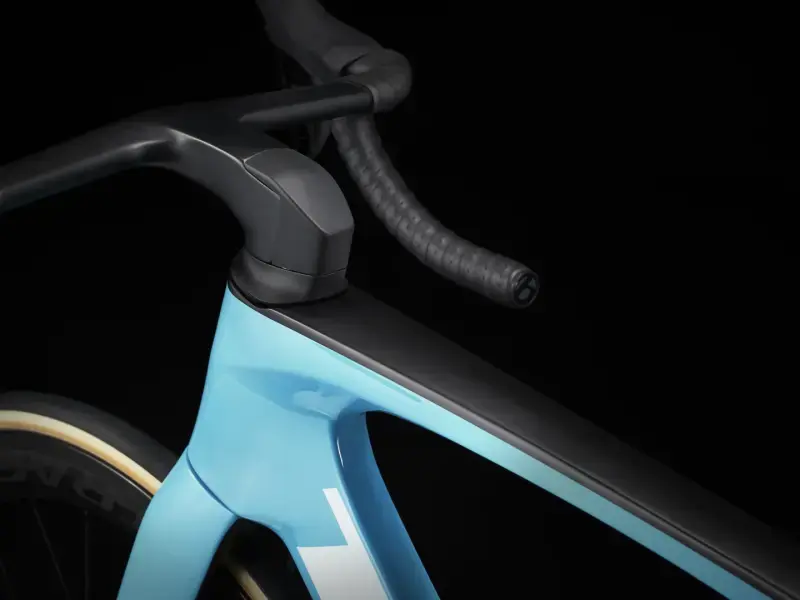

New ergonomic bar/stem
A newly optimized bar/stem that’s 3cm narrower in the hoods than the drops offers a more comfortable and ergonomic riding position for faster racing, improved aerodynamics, and ultimate control. Use the same bar/stem size you’re used to – if you normally ride with a 42cm bar/stem, opt for 42cm in the drops and 39cm in the hoods.
Refined integration
Every element of this bike is part of a greater whole. It has invisible cable routing, aero cockpit, hidden seatmast, and more.

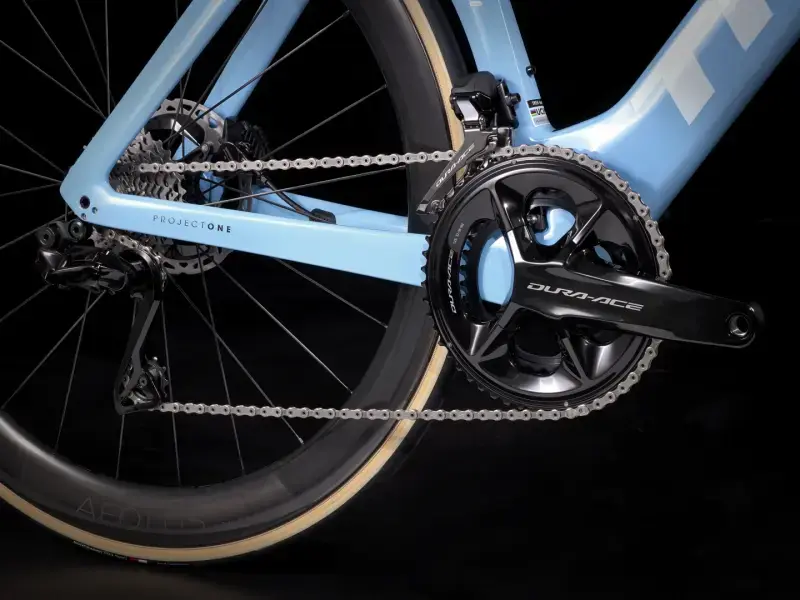

Shimano Dura-Ace Di2
The pinnacle of Shimano road technology and innovation, the new 12 speed Dura-Ace Di2 R9200 is Shimano’s fastest ever. Speed was the driving force behind this next-generation road group. That’s why every component was refined, designed, and fine-tuned to make you faster – whether you’re sprinting to the finish on the Champs-Elysees or crushing your local climb.
| Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Frame fit | H1.5 Race |
expand_less
| Wheel front | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Tire | Bontrager R4 320, 700x25c |
| Max tire size | 28c |
expand_less
| Shifter | Shimano Dura-Ace R9270 Di2, 12 speed |
|---|---|
| Front derailleur | Shimano Dura-Ace R9250 Di2, braze-on, down swing |
| Rear derailleur | Shimano Dura-Ace R9250 Di2, 34T max cog |
| *Crank | Size: 47 Shimano Dura-Ace R9200, 52/36, 165mm length |
| Size: 50, 52 Shimano Dura-Ace R9200, 52/36, 170mm length |
|
| Size: 54, 56, 58 Shimano Dura-Ace R9200, 52/36, 172.5mm length |
|
| Size: 60, 62 Shimano Dura-Ace R9200, 52/36, 175mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Dura-Ace R9200, 11-30, 12 speed |
| Chain | Shimano Dura-Ace/XTR M9100, 12 speed |
| Max chainring size | 1x: 50T, 2x: 54/40 |
expand_less
| *Saddle | Size: 47, 50, 52 Aeolus P2 RSL, carbon rails, 155mm width |
|---|---|
| Size: 54, 56, 58, 60, 62 Aeolus P2 RSL, carbon rails, 145mm width |
|
| *Seatpost | Size: 47, 50, 52, 54 Madone aero carbon internal seatmast cap, integrated light mount, 0mm offset, short length |
| Size: 56, 58, 60, 62 Madone aero carbon internal seatmast cap, integrated light mount, 0mm offset, tall length |
|
| *Handlebar/stem (integrated) | Size: 47 Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length |
| Size: 50, 52 Madone Integrated handlebar/stem, OCLV Carbon, 400mm width, 90mm stem length |
|
| Size: 54 Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 90mm stem length |
|
| Size: 56, 58 Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 100mm stem length |
|
| Size: 60, 62 Madone Integrated handlebar/stem, OCLV Carbon, 440mm width, 110mm stem length |
|
| Handlebar tape | Bontrager Supertack Perf tape |

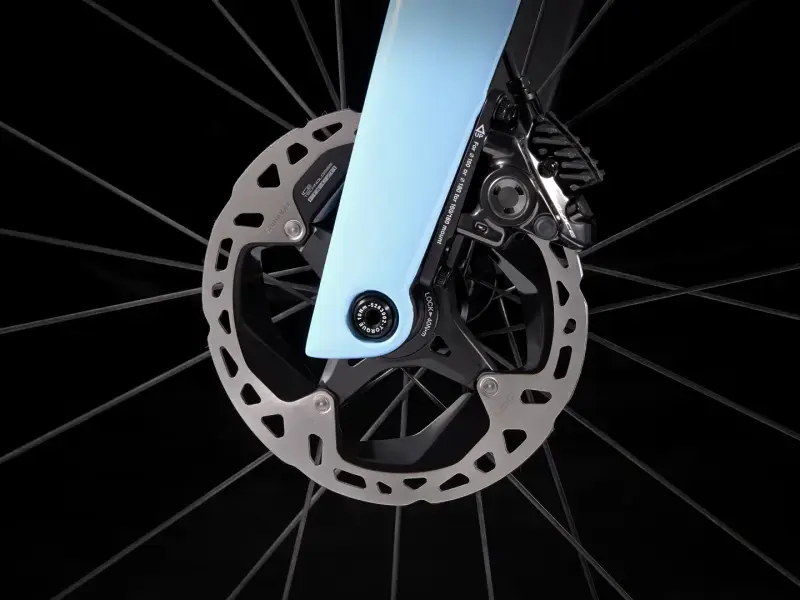

| Brake | Shimano Dura-Ace BR-9270 hydraulic disc, flat mount caliper, resin pad w/fin. |
| Brake rotor | Shimano MT900, centerlock, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
expand_less
| Battery | Shimano BT-DN300 |
|---|---|
| Charger | Charging cable included |
expand_less
| Weight | 54 – 7.10 kg / 15.66 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Size | Rider Height | Inseam |
|---|---|---|
| 47 |
152 – 158 cm 5’0″ – 5’2″ |
71 – 75 cm 28″ – 30″ |
| 50 |
158 – 163 cm 5’2″ – 5’4″ |
74 – 77 cm 29″ – 30″ |
| 52 |
163 – 168 cm 5’4″ – 5’6″ |
76 – 79 cm 30″ – 31″ |
| 54 |
168 – 174 cm 5’6″ – 5’9″ |
78 – 82 cm 31″ – 32″ |
| 56 |
174 – 180 cm 5’9″ – 5’11” |
81 – 85 cm 32″ – 33″ |
| 58 |
180 – 185 cm 5’11” – 6’1″ |
84 – 87 cm 33″ – 34″ |
| 60 |
185 – 190 cm 6’1″ – 6’3″ |
86 – 90 cm 34″ – 35″ |
| 62 |
190 – 195 cm 6’3″ – 6’5″ |
89 – 92 cm 35″ – 36″ |
