Trek FX Sport 4 Road Bike

US$ 1,259.00
(2 customer reviews)

Trek FX Sport 4 Road Bike

FX Sport 4 is a carbon fiber fitness bike for riders who want the speed of a lightweight road bike with the comfort and control of a flat handlebar.





Size Guide
Image Size Guide
Clear
GTIN: 85051406 SKU: RC-TREK20230041 Category:

Trek FX Sport 4 Road Bike



Make it your own

Customize your bike with fenders, racks, bottle cages, and more to make it your own.

1x drivetrain

A 1x drivetrain means more versatility, simpler shifting and less things to go wrong. You still have a wide range of gears, but with lighter and more intuitive shifting. Everything you need and nothing more.

Just-right geometry

The all-new FX Sport has slightly less reach and slightly more stack than previous models for a more comfortable yet active and fast riding position.

400 Series OCLV

Ultra high performance, within reach. The areal weight range and modulus mix of 400 Series OCLV provides an exhilarating sense of acceleration and confident handling.

Frame with Fork400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew
ForkCarbon, hidden fender mounts, flat mount disc, 5x100mm thru-skew
Wheels
Hub frontFormula CL-51 alloy, 100x5mm QR
Skewer front135x5mm bolt-on
Hub rearFormula CL-52 alloy, 135x5mm QR
Skewer rear169x5mm bolt-on

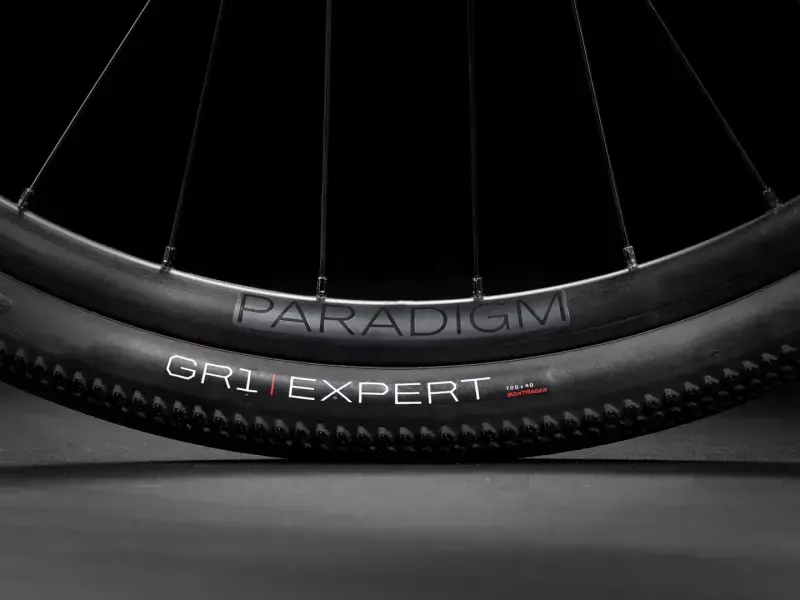

RimBontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, Presta valve
TireBontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c
Max tire size700x42mm without fenders, 700x40mm with fenders

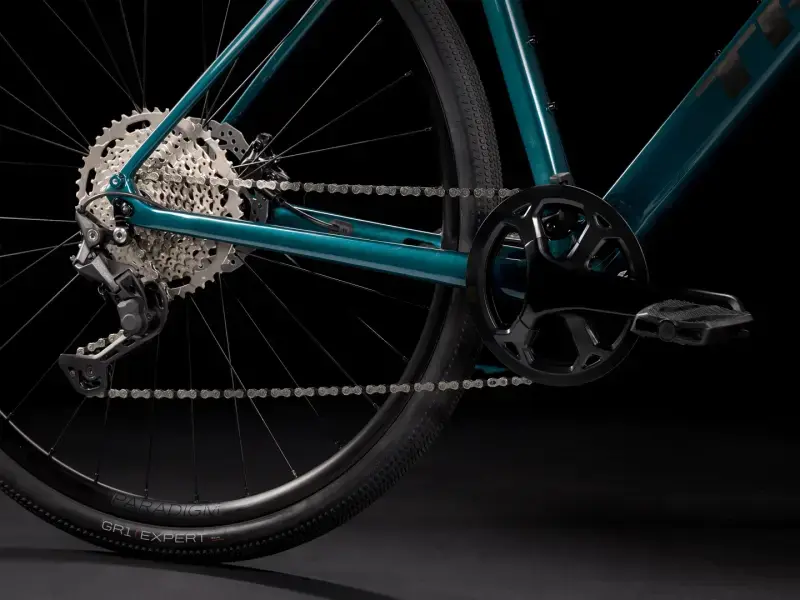

Drivetrain
ShifterShimano Deore M4100, 10 speed
Rear derailleurShimano Deore M5120, long cage
*CrankSize: XS, S
Prowheel alloy, 42T narrow-wide ring, 170mm length
Size: M, L, XL
Prowheel alloy, 42T narrow-wide ring, 175mm length
CassetteShimano Deore M4100, 11-46, 10 speed
ChainKMC X10, 10 speed
PedalBontrager City pedals
Max chainring size1x: 44T
Components
SaddleBontrager H1
SeatpostBontrager alloy, 27.2mm, 12mm offset, 330mm length
*HandlebarSize: XS, S
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width
Size: M, L, XL
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width
GripsBontrager Satellite IsoZone Plus, lock-on, ergonomic
*StemSize: XS
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: L, XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

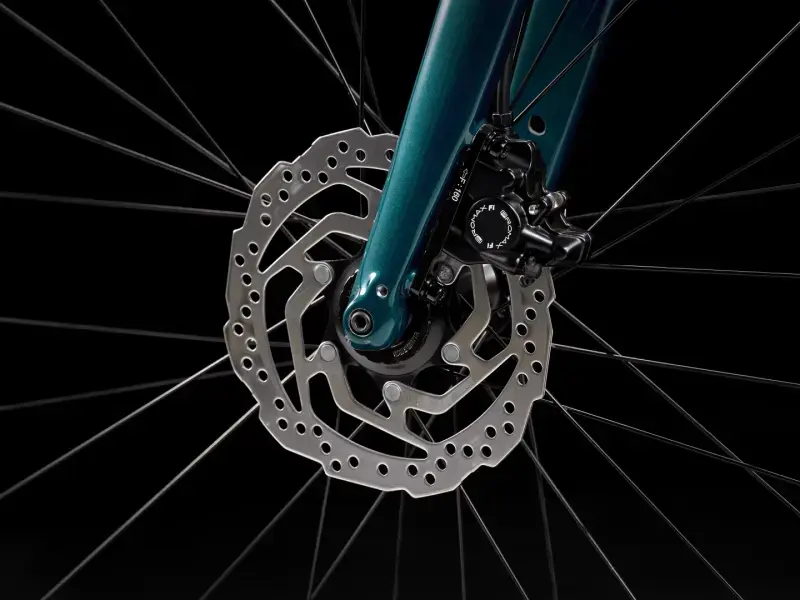

Brake SetPromax DSK-927 hydraulic disc, flat mount, 160mm rotor
Rotor sizeMax brake rotor size: 160mm
Weight
WeightM – 10.74 kg / 23.68 lbs
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).



SizeRider HeightInseam
XS

147 – 155 cm

4’10” – 5’1″

69 – 73 cm

27″ – 29″

S

155 – 165 cm

5’1″ – 5’5″

72 – 78 cm

28″ – 31″

M

165 – 175 cm

5’5″ – 5’9″

77 – 83 cm

30″ – 33″

L

175 – 186 cm

5’9″ – 6’1″

82 – 88 cm

32″ – 35″

XL

186 – 197 cm

6’1″ – 6’6″

87 – 93 cm

34″ – 37″



size

L, M, S, XL, XS

color

Dark Aquatic, Lithium Grey, Trek White
