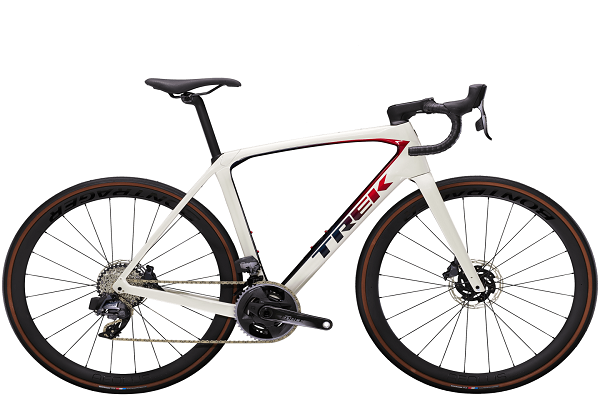

Trek Domane SL 7 Axs Gen 4 Road Bike
The smooth advantage
Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.
Podium-topping speed
Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.
Lighter than ever
Light and strong 500 Series OCLV Carbon and a new gram-saving design make this the lightest Domane SL disc ever.
Versatile tire clearance
Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.

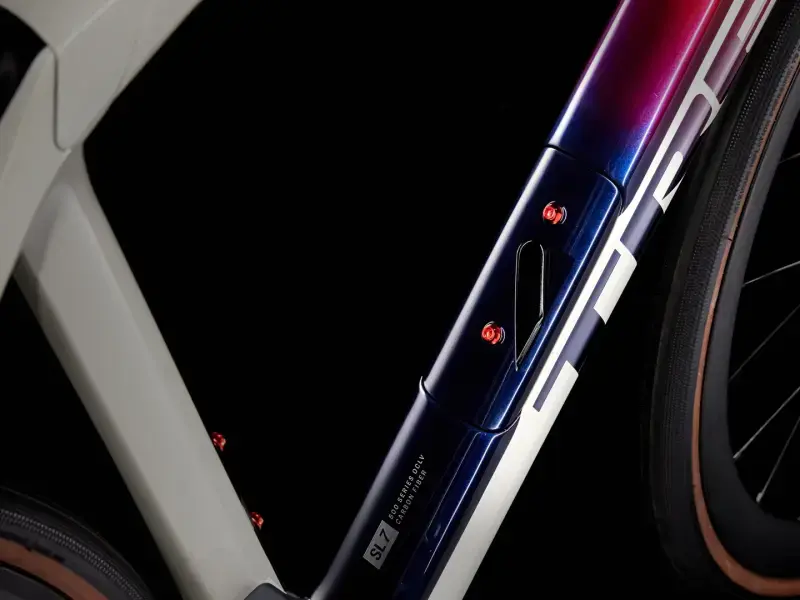

Internal storage
Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.
Refined integration
Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Frame fit | Endurance |
expand_less
| Wheel front | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, SRAM XD-R driver, 142x12mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c |
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager Aeolus XXX rim strip |
| Max tire size | 38c without fenders, 35c with fenders |
expand_less

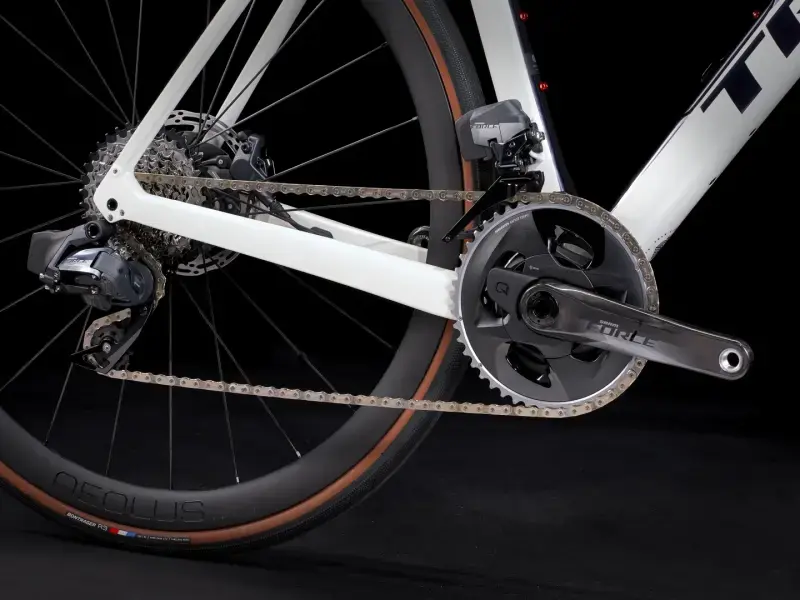

| Shifter | SRAM Force eTap AXS, 12 speed |
|---|---|
| Front derailleur | SRAM Force eTap AXS, braze-on |
| Rear derailleur | SRAM Force eTap AXS, 36T max cog |
| *Crank | Size: 47 SRAM Force AXS Power Meter, 46/33, DUB, 165mm length |
| Size: 50, 52 SRAM Force AXS Power Meter, 46/33, DUB, 170mm length |
|
| Size: 54, 56 SRAM Force AXS Power Meter, 46/33, DUB, 172.5mm length |
|
| Size: 58, 60, 62 SRAM Force AXS Power Meter, 46/33, DUB, 175mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1270, 10-36, 12 speed |
| Chain | SRAM Force, 12 speed |
| Max chainring size | 2x: 52/36 |
expand_less
| *Saddle | Size: 47, 50, 52 Bontrager Verse Short Comp, steel rails, 155mm width |
|---|---|
| Size: 54, 56, 58, 60, 62 Bontrager Verse Short Comp, steel rails, 145mm width |
|
| *Seatpost | Size: 47, 50, 52, 54, 56 Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length |
| Size: 58, 60, 62 Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length |
|
| *Handlebar | Size: 47 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width |
| Size: 50 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width |
|
| Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width |
|
| Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width |
|
| Size: 58, 60, 62 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 47 Bontrager RCS Pro, -7 degree, 70mm length |
| Size: 50 Bontrager RCS Pro, -7 degree, 80mm length |
|
| Size: 52, 54 Bontrager RCS Pro, -7 degree, 90mm length |
|
| Size: 56, 58 Bontrager RCS Pro, -7 degree, 100mm length |
|
| Size: 60, 62 Bontrager RCS Pro, -7 degree, 110mm length |
|

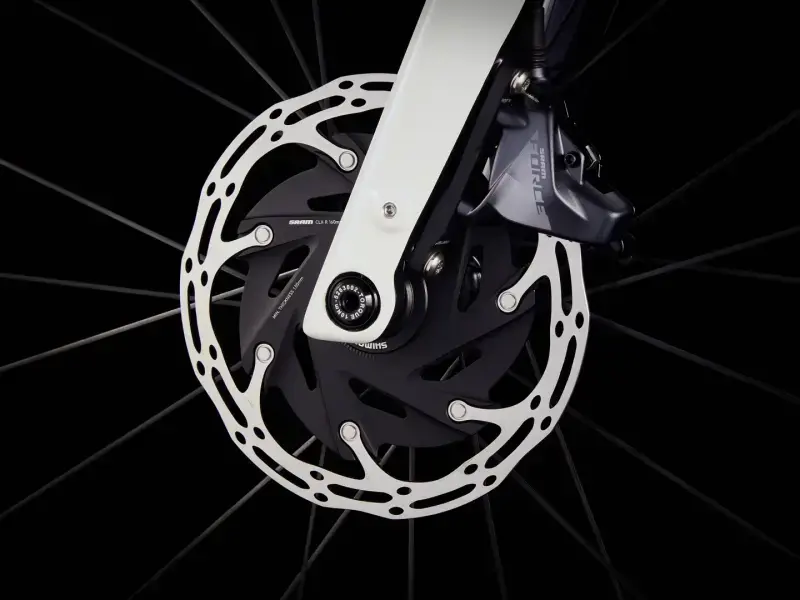

| Brake | SRAM Force eTap AXS hydraulic disc, flat mount |
| Brake rotor | SRAM CenterLine X, centerlock, round edge, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
expand_less
| Battery | SRAM eTap battery pack (with charger) |
|---|---|
| Bag | Bontrager BITS Internal Frame Storage Bag |
expand_less
| Weight | 56 – 8.48 kg / 18.7 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
SizeRider HeightInseam
44
150 – 153 cm
4’11” – 5’0″
71 – 73 cm
28″ – 29″
47
152 – 158 cm
5’0″ – 5’2″
71 – 75 cm
28″ – 30″
50
158 – 163 cm
5’2″ – 5’4″
74 – 77 cm
29″ – 30″
52
163 – 168 cm
5’4″ – 5’6″
76 – 79 cm
30″ – 31″
54
168 – 174 cm
5’6″ – 5’9″
78 – 82 cm
31″ – 32″
56
174 – 180 cm
5’9″ – 5’11”
81 – 85 cm
32″ – 33″
58
180 – 185 cm
5’11” – 6’1″
84 – 87 cm
33″ – 34″
60
185 – 190 cm
6’1″ – 6’3″
86 – 90 cm
34″ – 35″
62
190 – 195 cm
6’3″ – 6’5″
89 – 92 cm
35″ – 36″
