Shimano Tiagra 4700 10 Speed Groupset

Shimano Tiagra 4700 Groupset (10 Speed)

Shimano’s Tiagra 4700 Groupset (10 Speed) sets the benchmark for entry-level groupsets. Sharing technology from Dura-Ace, Ultegra and 105, has allowed Shimano to bring this quality groupset to the grassroot cyclists.

The Tiagra 4700 groupset offers balanced performance and consistency; the updated range – which now supports internal cable routing – remains dependable and durable, requiring little maintenance.

Tiagra 4700 Key Features:

10 Speed
Bottom Bracket Included (Threaded BSA)
Compact or Semi-Compact Option
Short Cage or Medium Cage Option
Standard Reach Rim Brake Calipers
Black
3 Cassette Options
Braze on Front Derailleur

Shimano Tiagra 4700 Chainset

The iconic four-arm crank design maintains a perfect balance between weight, efficiency and stiffness.

Shimano Tiagra 4700 10-Speed Groupset

Tiagra 4700 Crankset Features:

Cassette compatibility: 10 speed
Bottom Bracket: Included (Threaded BSA)
Chainset: Compact(50-34t) or Semi Compact(52-36t)
Chain Line: 150
BCD: 110mm
Crank Arm Length: 170mm, 172.5mm or 175mm

Shimano Tiagra 10 Speed Dual Control Shifters:

Tiagra 4700 runs on a 10-speed drivetrain operated by improved ergonomic shift/brake levers (STI). The slim and compact bracket grip offers easy reach to the brake/shift lever from the hood position and a comfortable lever feeling for a wide range of riders. Shifting is accurate and virtually effortless.

Shimano Tiagra 4700 10-Speed Groupset

Tiagra 10 Speed Dual Control Shifters:

Cassette compatibility: 10 speed
Chainset compatibility: Double
Shift Cable: Lever side: OT-SP41/RD side: OT-SP41 Sealed
Reach Adjuster: Screw

Shimano Tiagra 4700 Rear Derailleur

The rear derailleur has a revised cable pitch, which offers precise and long-lasting shifting performance and is compatible with up to a 34T cassette.

Tiagra 4700 Rear Derailleur (SS/Short Cage) Features:

Cassette compatibility: 10 speed
Maximum Low Sprocket: 28T
Maximum High Sprocket: 14T
Minimum Low Sprocket: 25T
Minimum High Sprocket: 11T
Maximum Front Difference: 16T
Total Capacity: 33T

Shimano Tiagra 4700 10-Speed Groupset

RD-4700 (GS/Medium Cage) Features:

Cassette compatibility: 10-speed
Maximum Low Sprocket: 34T
Maximum High Sprocket: 12T
Minimum Low Sprocket: 28T
Minimum High Sprocket: 11T
Maximum Front Difference: 16T
Total Capacity: 41T

Shimano Tiagra 4700 Front Derailleur (2 x 10 speed)

A light action front derailleur with a more ergonomic operation results in less chain drop. A braze on support bolt improves stability.

Tiagra 4700 Front Derailleur (2 x 10 speed) Features:

Cassette compatibility: 10 speed
Top Gear Teeth: 53T
Maximum Capacity: 16T
Chainstay Angle: 61-66
Chain Line: 43.5
Mount: Braze On

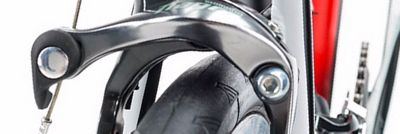

Shimano Tiagra Dual-Pivot Brake Caliper

The Tiagra brake system offers consistent all-round control in all conditions. Compared to the previous generation, the braking power has increased by 30%, while modulation of the brakes has also improved.

Shimano Tiagra 4700 10-Speed Groupset

Tiagra Dual-Pivot Brake Caliper Features:

Brake Type: Super SLR Dual Pivot
Cartridge Shoe Holder: R50T5/R50T4
Brake Reach: 51mm
Rim Width Compatibility: 19-26mm
Max Tire Clearance: 28c

Shimano HG Cassette Sprocket (10 speed)

Whether your touring, racing or commuting there are 3 options available in this quality 10-speed Shimano Tiagra cassette. Making sure you get to where you need as fast and easy as possible.

Shimano Tiagra 4700 10-Speed Groupset
