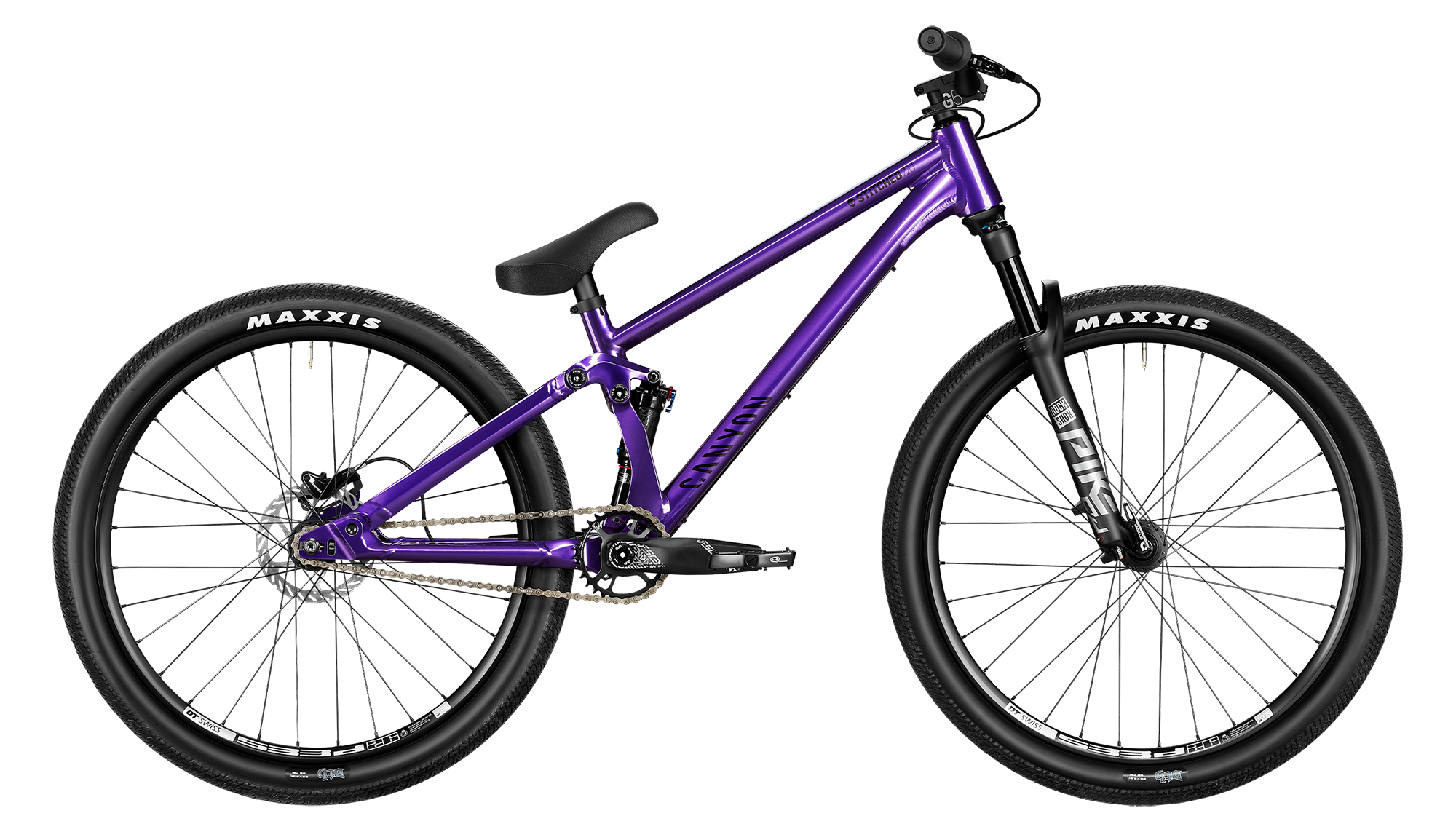

Canyon Stitched 720 (Purple Trasher) Dirt Jump Bike
Specifications
Product
Canyon Stitched 720 Bike
Model Year: 2022
Riding Type: Dirt Jump / Slopestyle
Rider: Unisex
Sizes and Geometry: MD
Wheel Size: 26″
Frame Material: Aluminum
Frame Material Details
Rear Travel: 100mm
Rear Shock: RockShox Monarch RT, 2-position compression adjust (open/lock), rebound adjust, 190mm x 51mm
Fork: RockShox Pike DJ, 40mm offset
Fork Travel: 100mm
Head Tube Diameter: Tapered, 1.125″ top, 1.5″ bottom
Headset
Stem: Canyon G5, 40mm length, 31.8mm bar clamp
Grips: Canyon Stitched
Brakes: SRAM Level TL, 2-piston, Avid G2 160mm 6-bolt rotor (rear only)
Brake Levers: SRAM Level TL (rear only)
Drivetrain: 1x
Shifters: None
Front Derailleur: None
Rear Derailleur: None
ISCG Tabs: ISCG05
Chainguide: None
Cranks: Truvativ Descendant 6K DUB, 165mm length
Chainrings: Truvativ Descendant 6K, 30 tooth
Bottom Bracket: SRAM DUB, sealed cartridge bearings, English/BSA threaded
Pedals: None
Chain: KMC Z510HX, singlespeed
Cassette: Single cog
Rims: DT Swiss 533D, aluminum, 22mm inner width
Hubs: Canyon Stitched, industrial bearings, 20x110mm Boost front, 10x135mm rear
Spokes
Tires: Maxxis DTH, 26″ x 2.3″
Saddle: Canyon Stitched
Seatpost: Canyon Stitched, 410mm length
Seatpost Diameter: 30.9mm
Seatpost Clamp: Single bolt
Rear Dropout / Hub Dimensions
10x135mm, horizontal sliding, integrated chain tensioners
Max. Tire Size
Bottle Cage Mounts
None
Colors
Storm Grey, Purple Trasher
Warranty
6 years frame and Canyon components
Weight
27 lb 16.0 oz (12,700 g)
