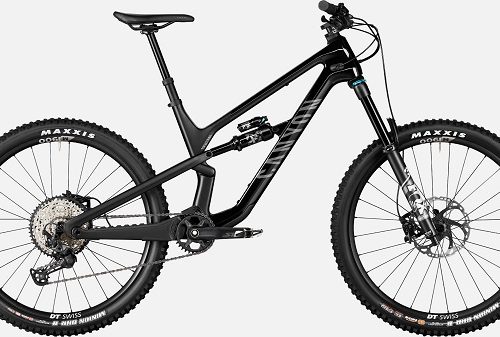

Canyon Spectral 29 CF 7 Mountain Bikes
Frame
-
Frame
- Canyon Spectral CF 29

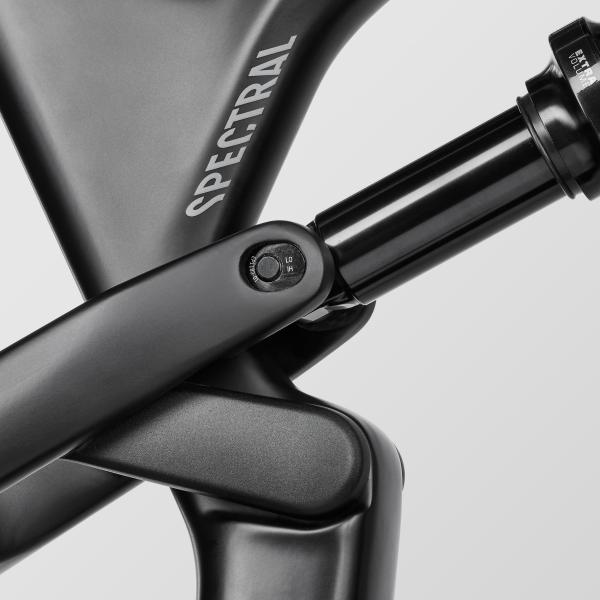

- Full-carbon frame with optimised stiffness-to-weight ratio. With Flip Chip system for simple geometry adjustment. Category 4.
- Axle dimension: 12×148 mm
- Material: Carbon (CF)
-
Rear Shock

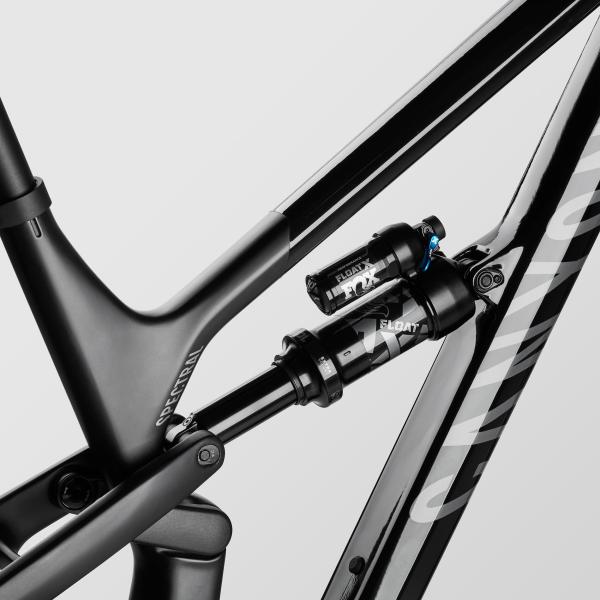

- FOX Float X Performance
-
Suspension Fork

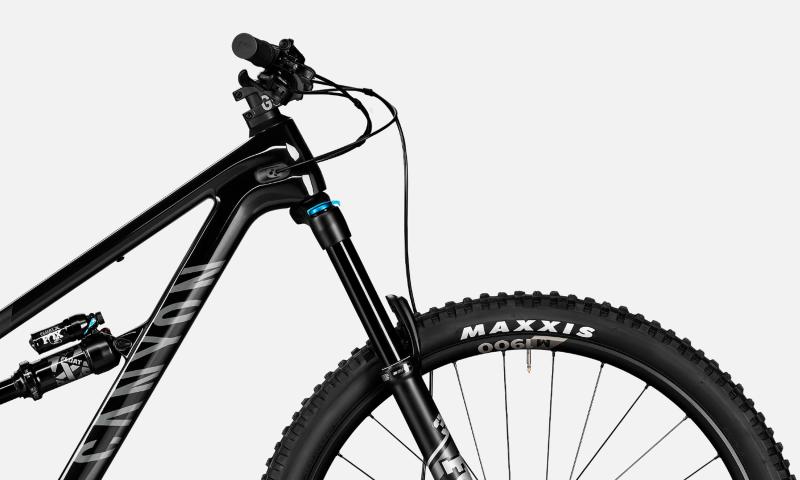

- FOX 36 Rhythm Grip
- Axle dimension: 15×110 mm
- Stanchion Diameter: 36 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8″ – 1,5″
- Offset: 44 mm
Drivetrain
-
Rear Derailleur
- Shimano SLX, 12-speed
- Fast, shockless shifting with HYPERGLIDE+ to deliver your power in all the right places.
- Cage length: long
-

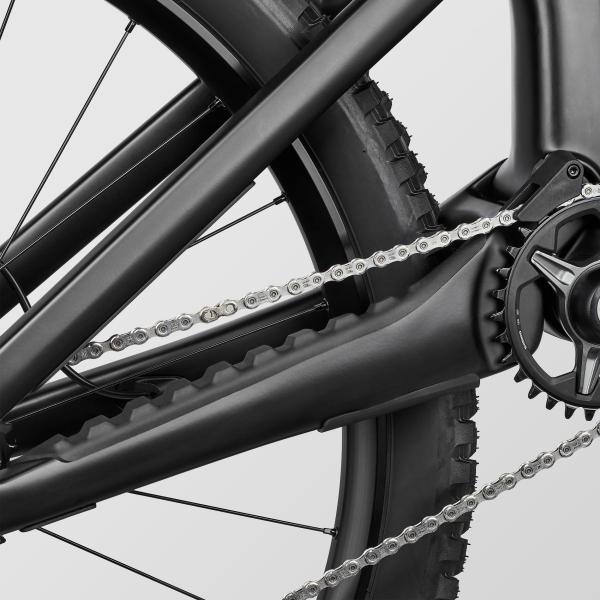

Chainguard
- Canyon GP0293-02
-
Shift Lever
- Shimano SLX, 12-speed
- 12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
-
Cassette
- Shimano SLX, 12-speed (10-51)
- Cassette size: 10-51T. Gear range: 510%.
-
Crank
- Shimano SLX FC-M7120-1
- Number of chainrings: 1
-
Bottom bracket
- Token BSA
- Bottom bracket standard: BSA 68/73
-
Chain
- Shimano CN-M6100 12s
Brakes
-
Disc Brake
- Shimano SLX 4-piston front brake
- High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g
-
Disc Brake
- Shimano SLX M7120
- High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g
-
Brake Rotor
- Rotor Hayes, 203 mm
- Size: 203 mm
Wheels
-
Wheel
- DT Swiss M1900
- Rotor mount: IS 6-bolt
- Wheelsize: 29″
-
Wheel
- DT SWISS M1900
- Rotor mount: IS 6-bolt
- Wheelsize: 29″
-
Tyre
- Maxxis Minion DHRII 3C MaxxTerra EXO 2,4×29“
- Wheelsize: 29″
-
Tyre
- Maxxis Minion DHRII 3C MaxxTerra EXO+ 2,4×29
- Width: 2,4″
-
Thru Axle
- Canyon Quixle Thru Axle
- The Canyon Quixle combines the stiffness of a through axle with the ease-of-use of a quick-release. You can quickly remove the rear wheel without tools. The handle discreetly slides into the axle after usage. The Quixle is only combined with the rear wheel.
- Axle dimension: 12×148 mm
Cockpit
-
Stem
- Canyon G5 Stem
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails.
- Fork steer tube diameter: 1 1/8″
- Clamping diameter: 31,8 mm
-
Handlebar
- Canyon G5 Riser Bar
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Width: 780 mm
- Rise: 30 mm
-
Grips
- Canyon G5 Grips
- Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar.
Seat
-
Saddle
- Ergon SM10 Enduro Comp
-
Seatpost
- G5 Adjustable Dropper Post
- Clamp diameter: 30,9 mm
- Material: Aluminium (AL)
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Bag
- Storage box for tools and replacement parts.
-
Manuals and Accessories
- Canyon Smallbox
- Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
-
Manuals and Accessories
- Canyon Quick Start Guide
