• Frame

  • Canyon Spectral 125
  • Canyon Spectral 125 aluminium frame. Frame model: M148. Excellent stiffness-to-weight ratio. Category 4.
  • Material: Aluminium (AL)

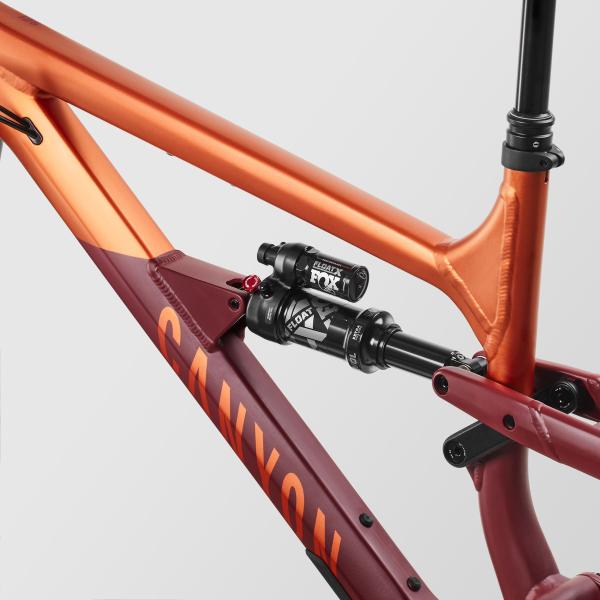

• Rear Shock

  • FOX Float X Performance
  • The FOX Float X Performance delivers 125 mm of rear travel.
• Suspension Fork

  • FOX 36 Rhythm
  • With its robust construction, the FOX 36 Rhythm is suitable for trail riders of al levels. With stepless compression adjustment up to a full lockout. Axle dimensions: 15 x 110 mm.
  • Axle dimension: 15×110 mm
  • Stanchion Diameter: 36 mm
  • Travel: 140 mm
  • Fork steer tube diameter: 1 1/8″ – 1,5″
  • Offset: 44 mm

• Rear Derailleur

  • Shimano SLX, 12-speed
  • Fast, shockless shifting with HYPERGLIDE+ to deliver your power in all the right places.
  • Cage length: long
• Shift Lever

  • Shimano SLX, 12-speed
  • 12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
• Cassette

  • Shimano SLX, 12-speed (10-51)
  • Cassette size: 10-51T. Gear range: 510%.
• Crank

  • Shimano SLX FC-M7120-1
  • Number of chainrings: 1
• Bottom bracket

  • Token BSA
  • Bottom bracket standard: BSA 68/73
• Chain

  • Shimano M6100 12-speed
  • SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly

• Disc Brake

  • Shimano SLX 4-piston front brake
  • High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g
• Disc Brake

  • Shimano SLX 4-piston rear brake
  • High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g
• Brake Rotor

  • Hayes D-Series 180 mm
  • Size: 180 mm
• Brake Rotor

  • Rotor Hayes, 203 mm
  • Size: 203 mm

• Wheel

  • DT Swiss AM LN 370
  • Axle dimension: 15×110 mm
  • Rotor mount: IS 6-bolt
  • Wheelsize: 29″
• Wheel

  • DT Swiss LN AM
  • Rotor mount: IS 6-bolt
  • Wheelsize: 29″
• Tyre

  • Maxxis Dissector 2.4″
  • The Dissector rear tire offers outstanding traction and braking control.
  • Width: 2.4″
• Tyre

  • Maxxis Minion DHRII 3C MaxxTerra EXO 2,4×29“
  • Wheelsize: 29″
• Thru Axle

  • Canyon Quixle Thru Axle
  • The Canyon Quixle combines the stiffness of a through axle with the ease-of-use of a quick-release. You can quickly remove the rear wheel without tools. The handle discreetly slides into the axle after usage. The Quixle is only combined with the rear wheel.
  • Axle dimension: 12×148 mm

• Stem

  • Canyon G5 Stem
  • Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails.
  • Fork steer tube diameter: 1 1/8″
  • Clamping diameter: 31,8 mm
• Handlebar

  • Canyon G5 Riser Bar
  • G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
  • Clamping diameter: 31,8 mm
  • Width: 780 mm
  • Rise: 30 mm
• Grips

  • Ergon GE1 Evo

• Saddle

  • Ergon SM10 Enduro
  • Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain.
• Seatpost

  • Iridium Dropper
  • The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability.
  • Clamp diameter: 30,9 mm
  • Material: Aluminium (AL)

• Pedals

  • None included
• Manuals and Accessories

  • Canyon Bag
  • Storage box for tools and replacement parts.
• Manuals and Accessories

  • Canyon Smallbox
  • Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
• Manuals and Accessories

  • Canyon Quick Start Guide
