Features
- Aspect 700/900 Alloy Frame
- Suntour XCR32-LO-R 100mm
- Shimano Alivio 18 Speed
- Shimano Brakes
- Kenda Booster

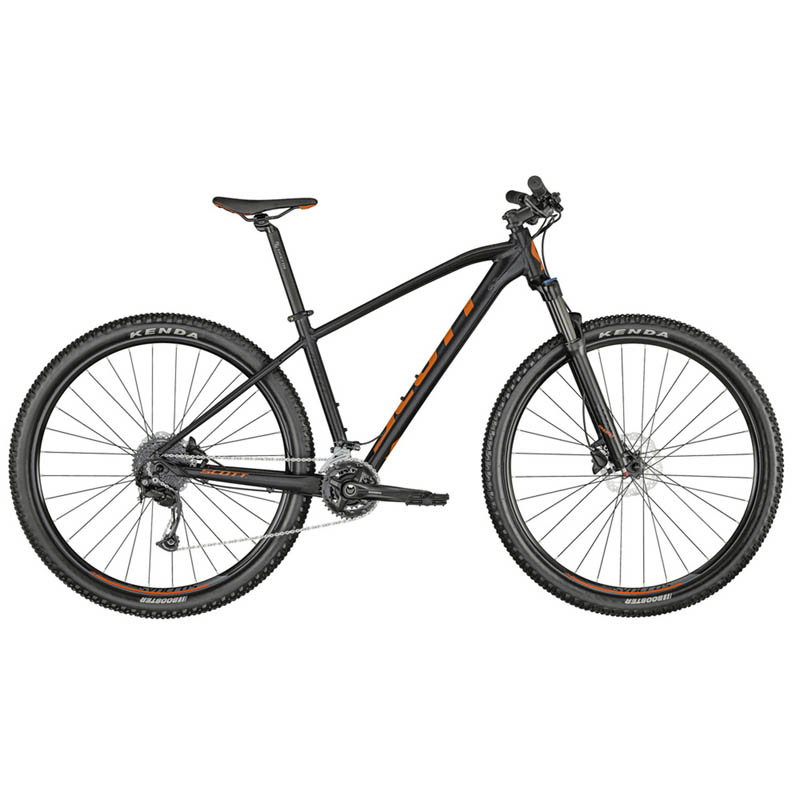

The SCOTT Aspect 940 is a hardtail mountain bike that is designed to be light, efficient and reasonably priced. Featuring a lockout mechanism for the fork, disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.
- Frame: Aspect 900-700 series / Alloy 6061 Custom Butted Tubing/BSA73 / Internal Cable Routing / replaceable hanger
- Fork: Suntour XCR32/X1-RL-R / Hyd. Lockout / Reb. Adj./100mm travel
- Rear Derailleur: Shimano Alivio RD-M3100/18 Speed
- Front Derailleur: Shimano FD-M3120 Side Swing / 31.8mm
- Shifters: Shimano SL-M3100/R-fire plus / 2 way release/w/gear indicator
- Crankset: Shimano FC-MT2102/2-piece Design / 36X22
- BB-Set: Shimano BB-MT500/Hollowtech II / threaded
- Chain: KMC X9
- Cassette: Shimano CS-HG200-9 / 11-36T
- Brakes: Shimano MT200 / Hydr. Disc
- Rotor: Shimano SM-RT10 CL rotor / F&R 160mm
- Handlebar: Syncros 3.0 / 720mm/black / 31.8mm / 12mm rise / 9° BS/Syncros Pro Grip
- H’stem: Syncros 3.0 / 7° / Black
- Seatpost: Syncros 3.0/31.6mm / 350mm / Black
- Seat: Syncros 3.0
- Headset: Syncros OE Press Fit / 1 1/8/OD 50mm / ID 44mm”
- Hub (Front): Shimano HB TX505
- Hub (Rear): Shimano FH-TX5058
- Spokes: 14 G / stainless / black
- Rims: Syncros X-20 Disc/32H / black
- Front Tire: Kenda Booster/2.4 / 30TPI”
- Rear Tire: Kenda Booster/2.4 / 30TPI”
- Pedals: VP VP-536
- Approx weights in KG: 14.15
- Approx weights in LBS: 31.20
- Max. System Weight: 128 kg/The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
MOUNTAIN BIKE SIZING CHART
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4′ 10″ – 5” 2″ | 148 – 158 | 13 -14 | XS |
| 5′ 2″ – 5′ 6″ | 158 – 168 | 15 – 16 | S |
| 5′ 6″ – 5′ 10″ | 168 – 178 | 17 -18 | M |
| 5′ 10″ – 6′ 1″ | 178 -185 | 19 – 20 | L |
| 6′ 1″ – 6′ 4″ | 185 – 193 | 21 – 22 | XL |
| 6′ 4″ – 6′ 6″ | 193 – 198 | 23 -24 | XXL |
WOMEN’S MOUNTAIN BIKE SIZING CHART
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4′ 10″ – 5′ 2″ | 148 – 158 | 13 – 14 | XS |
| 5′ 2″ – 5′ 6″ | 158 -168 | 15 – 16 | S |
| 5′ 6″ – 5′ 10″ | 168 – 178 | 17 – 18 | M |
| 5′ 10″ – 6′ 1″ | 178 – 185 | 19+ | L |
